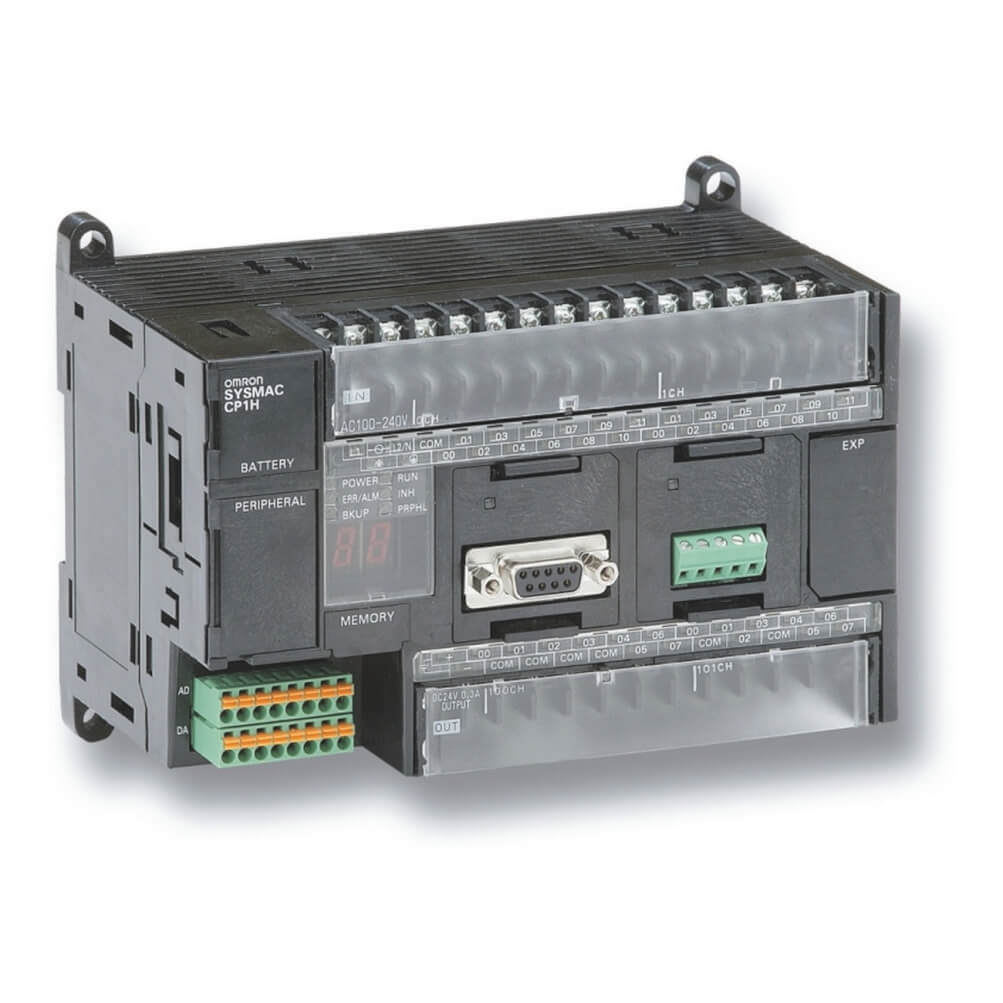

Omron CP1H-X40DT1-D CP1HX40DT1D

Description:

CP1HX40DT1D PLC 20K STEPS PROGRAM 32K WORDS DATA MEMORY 24VDC 7.5MA The Omron CP1H-X40DT1-D is a versatile and compact programmable logic controller (PLC) designed for a wide range of industrial automation applications. This model offers 40 digital I/O points, including both input and output capabilities, in a single, space-saving unit. With its robust performance and extensive functionality, the CP1H-X40DT1-D is ideal for small to medium-sized control systems, providing reliable automation and control with ease of integration and programming. Model: CP1H-X40DT1-D Type: Programmable Logic Controller (PLC) Number of I/O Points: 40 (24 digital inputs, 16 digital outputs) Input Type: 24V DC (sinking or sourcing) Output Type: Transistor (sourcing type), 24V DC Maximum Output Current: 0.5A per point Response Time: 1 ms (typical) Programming Method: Ladder logic, with support for structured text Communication Ports: 1 x RS-232C serial port 1 x RS-485 serial port Operating Voltage: 24V DC Operating Temperature Range: 0°C to +55°C Dimensions: 90 x 90 x 58 mm Mounting Type: Rail mount (DIN rail) Enclosure Rating: IP20
