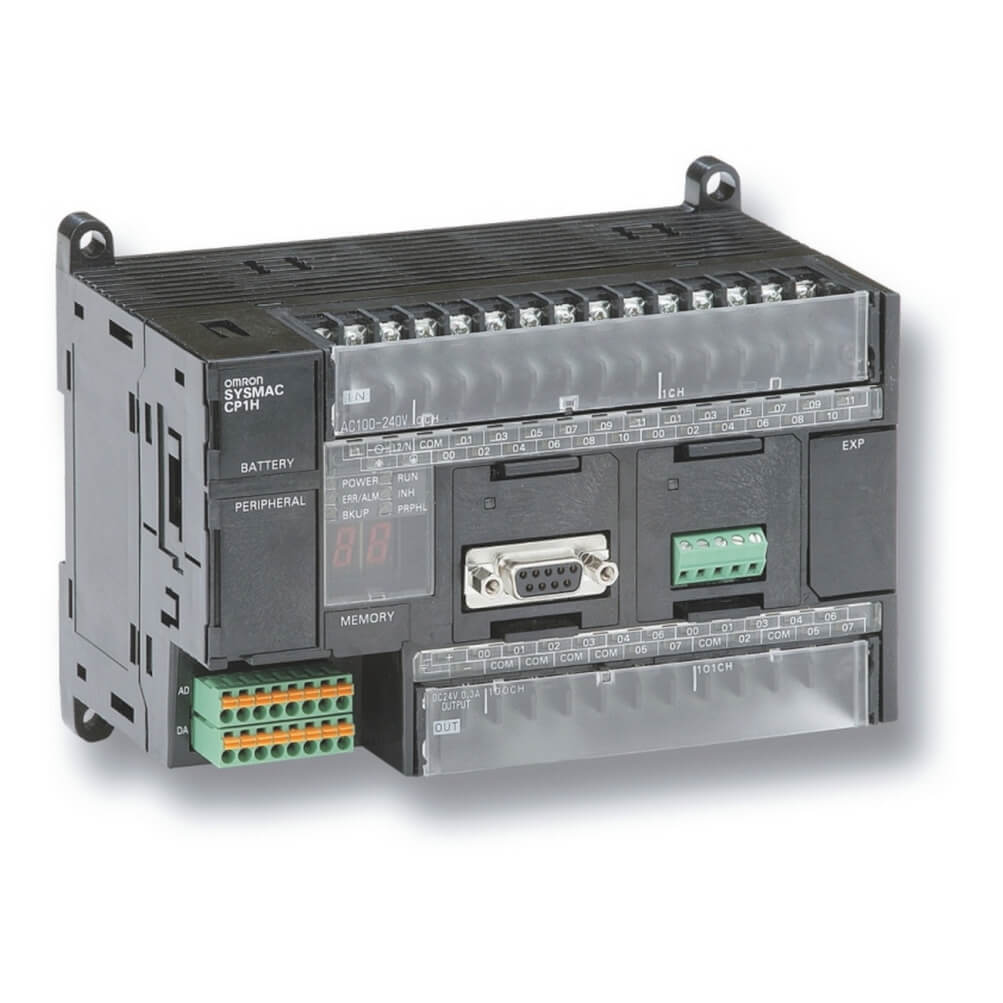

Omron CP1H-XA40DR-A Programmable Logic Controller PLC UNIT CP1HXA40DRA

Description:

The Omron CP1H-XA40DR-A Programmable Logic Controller is used in Omron CP1H automation systems for advanced machine control with integrated analog and digital I/O. Commonly installed in packaging machines, process control systems, conveyor lines, and automated production equipment. Maintenance teams and system integrators use this part for system control, replacement, retrofit, and enhanced automation applications.

Applications:

The Omron CP1H-XA40DR-A is utilized in industrial automation environments requiring both discrete and analog control capabilities. It is widely applied in material handling systems, food processing equipment, temperature and process control systems, and manufacturing lines where combined analog and digital control improves system efficiency and flexibility.

Technical Specifications:

• Manufacturer Part Number (MPN): CP1H-XA40DR-A / CP1HXA40DRA
• Product Type: Programmable Logic Controller (PLC), CPU Unit with Analog I/O
• Series: Omron CP1H Series
• Total I/O Points: 40
• Digital Inputs: 24 (24 VDC)
• Digital Outputs: 16 relay outputs
• Analog Inputs: Built-in analog inputs (model dependent)
• Analog Outputs: Built-in analog outputs (model dependent)
• Output Type: Relay
• Power Supply: 100 to 240 VAC
• Program Memory: 20K steps
• Data Memory: 32K words
• High-Speed Counters: Built-in high-speed inputs
• Communication Ports: USB, optional serial/Ethernet
• Expansion Capability: Supports CP1 series expansion modules
• Mounting Type: DIN rail mounting
• Operating Temperature: 0°C to 55°C

Common Replacements:

• Omron CP1H-X40DR-A
• Omron CP1L-M40DR-A
• Omron CJ2M-CPU31
