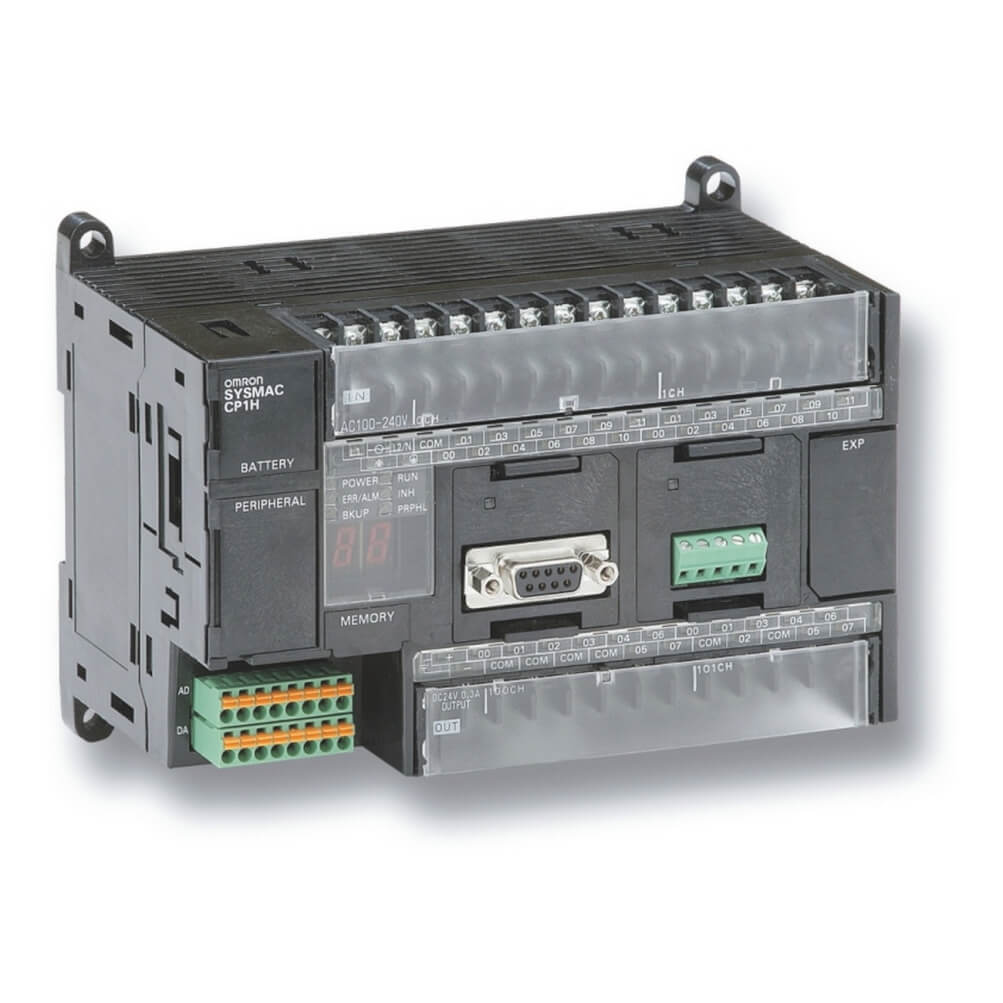

Omron CP1H-XA40DT1-D CPU Analogue Transistor Output Computer Interface CP1HXA40DT1D

Description:

The Omron CP1H-XA40DT1-D PLC CPU unit is used in CP1H-series automation systems to execute control logic and manage both digital and analog I/O with high-speed transistor outputs in industrial equipment. Commonly installed in packaging machines, conveyor systems, assembly lines, and process control panels requiring compact PLC control with integrated analog functionality and fast output switching. Maintenance teams and system integrators use this part for replacement, retrofit, and maintaining efficient automation control in industrial systems.

Applications:

The Omron CP1H-XA40DT1-D PLC is used in industrial environments where integrated digital and analog control with high-speed outputs is essential. It is applied in material handling systems, packaging equipment, machine automation, and process control applications to manage inputs and outputs, control analog signals, and ensure precise and responsive operation within PLC-based systems.

Technical Specifications:

• Manufacturer: Omron
• Part Number: CP1H-XA40DT1-D
• Product Type: PLC CPU Unit with Analog I/O
• Series: Omron CP1H Series
• I/O Points: 40 total I/O (24 digital inputs, 16 transistor outputs typical)
• Output Type: Transistor output (high-speed)
• Analog Inputs: Built-in analog input channels (model dependent)
• Analog Outputs: Built-in analog output channels (model dependent)
• Power Supply: 24 VDC
• Program Capacity: Approx. 20K steps
• Communication Ports: USB and serial communication
• Functions: High-speed counters, pulse outputs for motion control
• Expansion Capability: Supports CP1W expansion modules
• Mounting Type: DIN rail mount
• Connection Type: Screw terminal
• Operating Temperature: 0°C to +55°C

Common Replacements:

• Omron CP1H-XA40DT-D PLC CPU Unit
• Omron CP1L-EM40DT1-D PLC CPU
• Omron CJ2M-CPU31 PLC CPU Module
