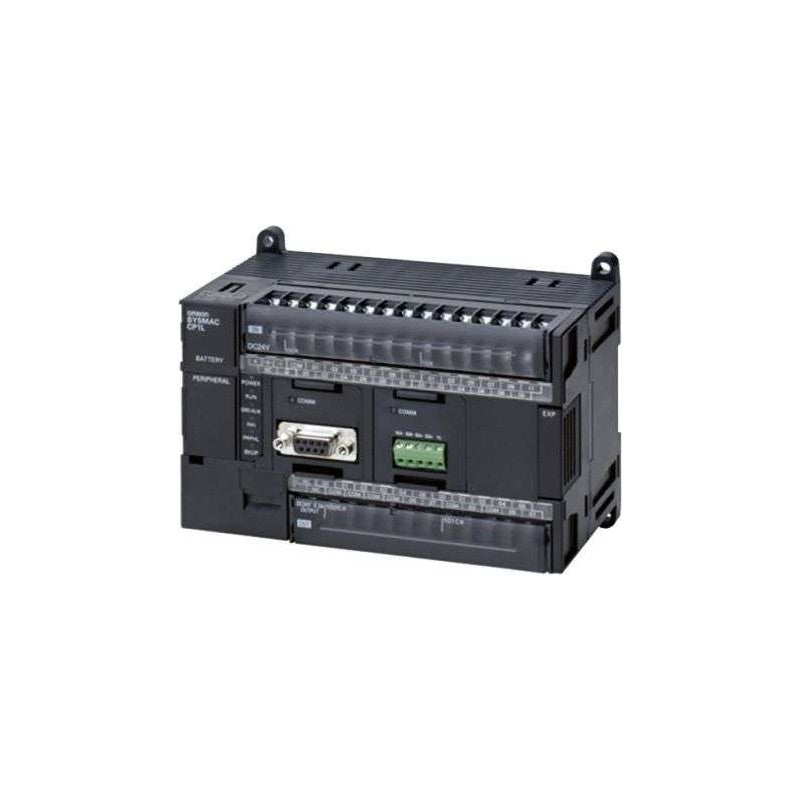

Omron CP1L-L10DT-D PLC CP1LL10DTD

Description:

CP1LL10DTD 6 IN 4 NPN OUT DC IN CP1 PLC The CP1L-L10DT-D is a compact and efficient programmable logic controller (PLC) from Omron’s CP1L series, designed for reliable and flexible control in a variety of industrial automation applications. This model features 10 I/O points, including 6 digital inputs and 4 digital outputs, with the outputs being transistor type for high-speed switching and durability. The CP1L-L10DT-D comes with a built-in RS-232C communication port, facilitating seamless integration and data exchange with other devices. Its small footprint and versatile I/O configuration make it ideal for applications where space is limited but reliable control is essential.

Technical Specifications:

• Model: CP1L-L10DT-D
• Type: Programmable Logic Controller (PLC)
• I/O Configuration:
• Digital Inputs: 6 points (24V DC)
• Digital Outputs: 4 points (Transistor type, 24V DC)
• Program Memory: 2K steps
• Data Memory: 1K words
• Communication Ports:
• Built-in Serial Port: 1 (RS-232C for communication)
• Operating Voltage: 24V DC
• Current Consumption: 300 mA (typical)
• Operating Temperature Range: 0°C to +55°C
• Storage Temperature Range: -25°C to +70°C
• Dimensions (W x H x D): 60 x 90 x 55 mm
• Weight: Approximately 150 g
• Mounting Type: DIN rail mountable
• Environmental Protection: IP20 (dust-tight, protected against solid objects greater than 12 mm)
• Compliance: RoHS compliant
