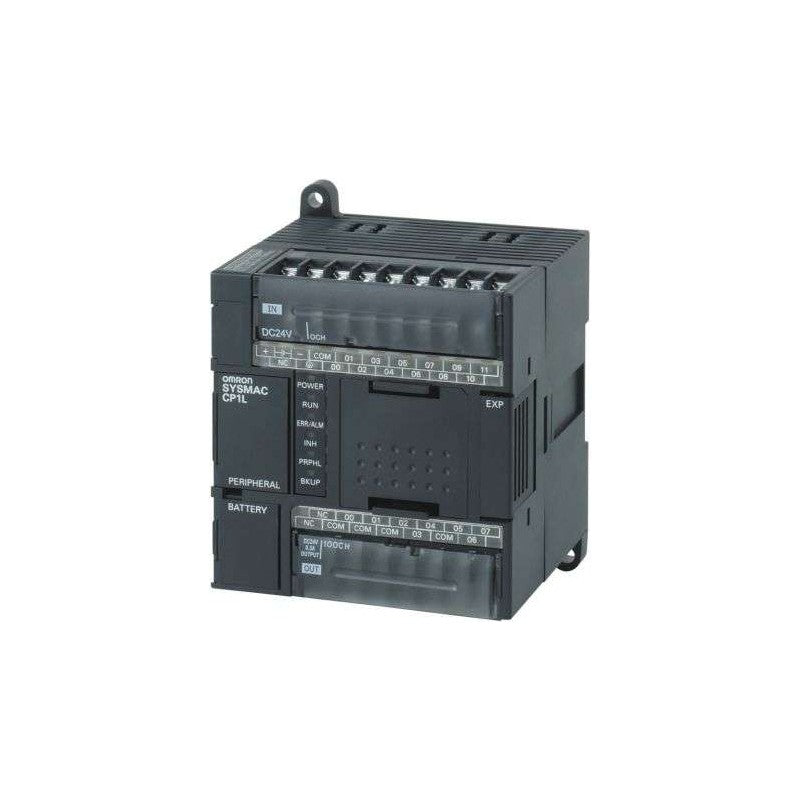

Omron CP1L-L14DT-D PLC CP1LL14DTD

Description:

CP1LL14DTD PROGRAMMABLE CONTROLLER CPU 8 IN/6 OUT NPN 0.3/1.5AMPS 24/30VDC 13W The CP1L-L14DT-D is a robust and compact programmable logic controller (PLC) from Omron’s CP1L series, designed to deliver reliable and efficient control for a variety of industrial automation applications. This model features 14 I/O points, including 8 digital inputs and 6 digital outputs. The outputs are transistor type, providing high-speed switching and long-lasting performance. The CP1L-L14DT-D includes a built-in RS-232C communication port, which simplifies integration and data exchange with other devices. Its compact size and versatile I/O configuration make it an excellent choice for small to medium-sized control tasks where space is at a premium.

Technical Specifications:

• Model: CP1L-L14DT-D
• Type: Programmable Logic Controller (PLC)
• I/O Configuration:
• Digital Inputs: 8 points (24V DC)
• Digital Outputs: 6 points (Transistor type, 24V DC)
• Program Memory: 2K steps
• Data Memory: 1K words
• Communication Ports:
• Built-in Serial Port: 1 (RS-232C for communication)
• Operating Voltage: 24V DC
• Current Consumption: 400 mA (typical)
• Operating Temperature Range: 0°C to +55°C
• Storage Temperature Range: -25°C to +70°C
• Dimensions (W x H x D): 60 x 90 x 75 mm
• Weight: Approximately 200 g
• Mounting Type: DIN rail mountable
• Environmental Protection: IP20 (dust-tight, protected against solid objects greater than 12 mm)
• Compliance: RoHS compliant
