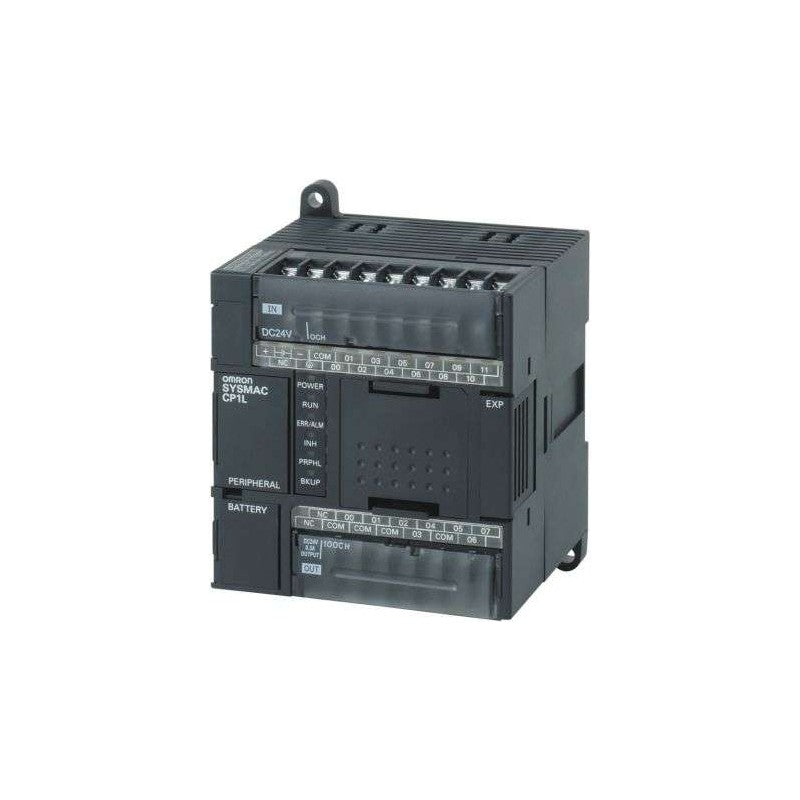

Omron CP1L-L20DT-D PLC Programming Unit CP1LL20DTD

Description:

CP1LL20DTD PROGRAMMABLE LOGIC CONTROLLER 24 VDC SUPPLY 12 X 24 VDC INPUTS 8 X NPN OUTPUTS 0.3 A 5K STEPS PROGRAM + 10K WORDS DATA MEMORY The Omron CP1L-L20DT-D is a compact and versatile programmable logic controller (PLC) designed for small to medium automation tasks. This unit combines 20 digital inputs and 12 digital outputs in a single compact module, offering a robust solution for a wide range of control applications. It features high-speed processing, integrated communication ports, and supports expansion through additional I/O modules, making it an ideal choice for efficient and flexible automation solutions.

Technical Specifications:

• Type: Programmable Logic Controller (PLC)
• Model Number: CP1L-L20DT-D
• Digital Inputs: 20 (NPN or PNP, selectable)
• Digital Outputs: 12 (Relay or Transistor, selectable)
• Input Voltage: 24V DC
• Output Voltage: 24V DC (Transistor outputs); AC 250V (Relay outputs)
• Maximum I/O Capacity: 20 inputs and 12 outputs
• Programming Language: Ladder Diagram (LD), Function Block Diagram (FBD), Structured Text (ST)
• Communication Ports: RS-232C, RS-485
• Power Supply: 24V DC
• Operating Temperature Range: 0°C to 55°C
• Operating Humidity Range: 35% to 85% RH (non-condensing)
• Dimensions: 90 mm (W) x 90 mm (H) x 70 mm (D)
• Weight: Approximately 0.4 kg
