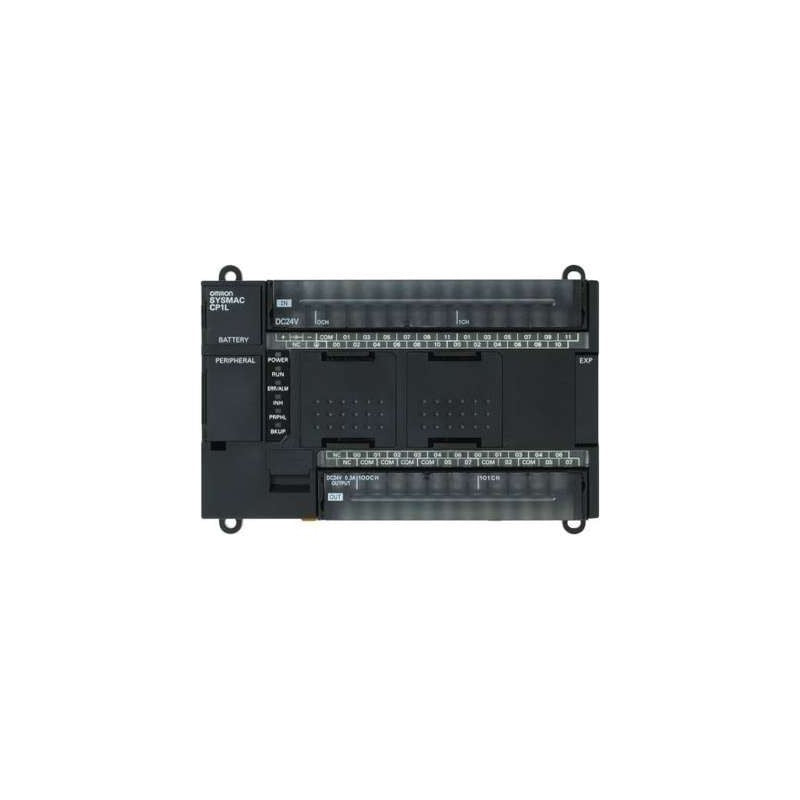

Omron CP1L-M40DT-D PLC CP1LM40DTD

Description:

CP1LM40DTD CPU UNIT 40 POINT 24 INPUTS / 16 OUTPUTS 10 K STEPS NPN TRANSISTOR OUTPUT DC POWER SUPPLY The CP1L-M40DT-D is a versatile and compact programmable logic controller (PLC) from Omron’s CP1L series, designed to handle a wide range of industrial automation tasks with efficiency and reliability. This model features 40 I/O points, including 24 digital inputs and 16 digital outputs. The outputs are transistor type, providing fast switching and durability suitable for demanding applications. The PLC includes a built-in RS-232C communication port for straightforward integration and data exchange with other devices. Its high-density I/O, combined with a compact form factor, makes the CP1L-M40DT-D ideal for medium-sized automation systems where space and performance are crucial.

Technical Specifications:

• Model: CP1L-M40DT-D
• Type: Programmable Logic Controller (PLC)
• I/O Configuration:
• Digital Inputs: 24 points (24V DC)
• Digital Outputs: 16 points (Transistor type, 24V DC)
• Program Memory: 8K steps
• Data Memory: 4K words
• Communication Ports:
• Built-in Serial Port: 1 (RS-232C for communication)
• Operating Voltage: 24V DC
• Current Consumption: 600 mA (typical)
• Operating Temperature Range: 0°C to +55°C
• Storage Temperature Range: -25°C to +70°C
• Dimensions (W x H x D): 80 x 90 x 95 mm
• Weight: Approximately 400 g
• Mounting Type: DIN rail mountable
• Environmental Protection: IP20 (dust-tight, protected against solid objects greater than 12 mm)
• Compliance: RoHS compliant
