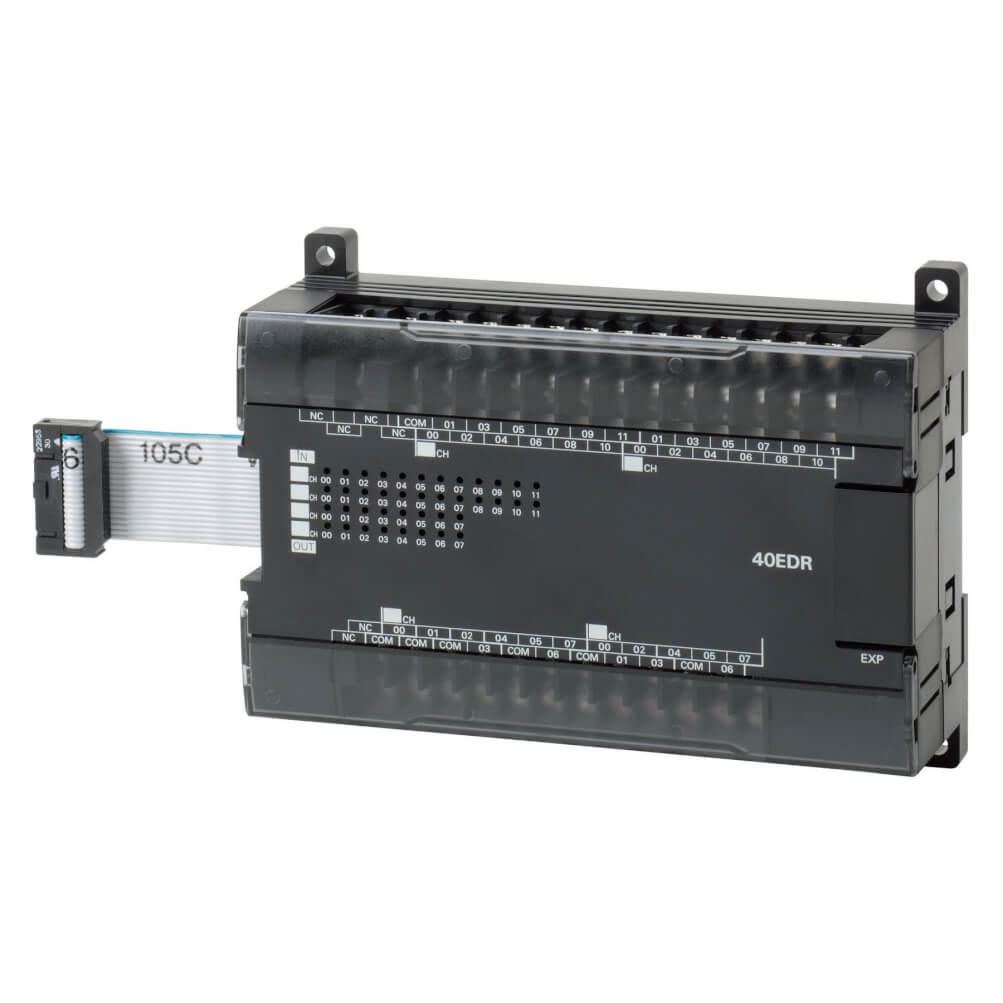

Omron CP1W-40EDR CP1W40EDR PLC Programmable Controller

Description:

CP1W40EDR I/O EXPANSION UNIT 24 DIGITAL INPUTS 16 DIGITAL OUTPUTS 2 AMP 24 VDC 0-32 MS OFF/ON DELAY 20.4-26.4 V PNP/NPN The CP1W-40EDR is a versatile and high-performance expansion I/O module designed for use with Omron’s CP1 series PLCs. This module adds 40 additional discrete I/O points to the base PLC, facilitating increased input and output capacity for complex automation tasks. It features 20 digital inputs and 20 digital outputs, all with high-speed capabilities to support fast and accurate signal processing. Compact and robust, the CP1W-40EDR enhances the functionality of CP1 PLC systems, making it ideal for applications requiring extensive I/O management.

Technical Specifications:

• Type: Expansion I/O module
• Number of Inputs: 20 digital inputs
• Number of Outputs: 20 digital outputs
• Input Voltage: 24V DC
• Input Current: 7.5 mA per input (typical)
• Output Voltage: 24V DC
• Output Current: 0.5A per output (maximum)
• Response Time: 2 ms (typical)
• Isolation Voltage: 500V AC (between input and output)
• Protection Rating: IP20
• Operating Temperature: 0°C to +55°C
• Dimensions: 90 x 90 x 60 mm (W x H x D)
