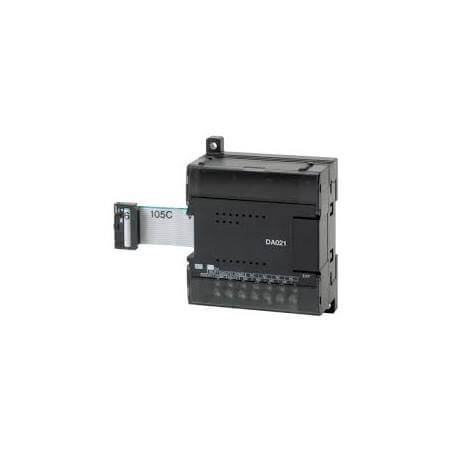

Omron CP1W-DA021 PLC Analog Output 6000 RES CP1WDA021

Description:

The Omron CP1W-DA021 Analog Output Module is a PLC expansion unit used in Omron CP1 series automation systems. Commonly installed in control panels to convert digital signals into analog outputs for controlling field devices such as drives, valves, and actuators. Maintenance teams, OEMs, and system integrators use this module for replacement, retrofit, and precise analog signal control in industrial applications.

Applications:

The Omron CP1W-DA021 Analog Output Module is used in industrial automation systems requiring accurate analog output control, including process control, temperature regulation, manufacturing systems, and machine automation. It is ideal for applications that demand flexible voltage and current output signals, stable performance, and seamless integration with CP1 series PLC platforms.

Technical Specifications:

• Brand: Omron
• Part Number: CP1W-DA021
• Product Type: Analog Output Module (D/A Unit)
• Series: CP1W (CP1 Series)
• Number of Outputs: 2 analog outputs
• Output Signal Types: 1–5 V, 0–5 V, 0–10 V, ±10 V, 0–20 mA, 4–20 mA
• Resolution: 13-bit (approx. 1/6000)
• Conversion Time: Approx. 2 ms per point
• Output Load Resistance: 350 Ω to 2 kΩ (current output)
• Power Consumption: 5 VDC: 40 mA max; 24 VDC: 95 mA max
• Isolation: Photocoupler isolation (no channel-to-channel isolation)
• Mounting Type: PLC rack / expansion module
• Dimensions: Approx. 90 × 86 × 50 mm
• Weight: Approx. 200 g
• Application: Analog signal output for industrial control systems

Common Replacements:

• Omron CP1W-DA041
• Omron CJ1W-DA021
• Omron CJ1W-DA041
