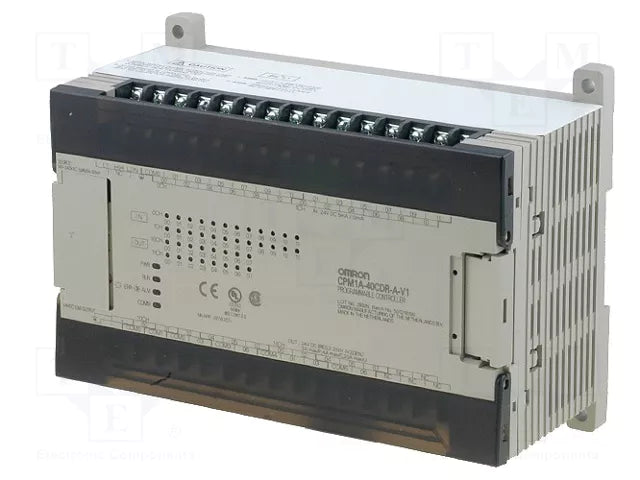

Omron CPM1A-40CDR-A-V1 Programmable Controller PLC 230V AC, 16 Out, 24 In CPM1A40CDRAV1

Description:

CPM1A40CDRAV1 DISCONTINUED BY MANUFACTURER CPU MODULE 40 POINT 60 VA 100-240 VAC INPUT 50/60 HZ 24 VDC OUTPUT The CPM1A-40CDR-A-V1 is a versatile and compact programmable logic controller (PLC) from Omron’s CPM1A series, designed to offer reliable control and automation capabilities for a wide range of industrial applications. This model features 40 I/O points, including 24 digital inputs and 16 digital outputs, providing flexible and comprehensive control in a compact form factor. Its integrated relay outputs are capable of handling moderate loads, making it ideal for applications requiring direct control of devices such as motors, solenoids, and other actuators. The CPM1A-40CDR-A-V1 also offers easy programming and integration, with support for Omron's CX-Programmer software for efficient configuration and deployment.

Technical Specifications:

• Model: CPM1A-40CDR-A-V1
• Type: Programmable Logic Controller (PLC)
• I/O Configuration: 40 points total
• Digital Inputs: 24 points (NPN or PNP)
• Digital Outputs: 16 points (Relay type)
• Input Voltage Range: 24V DC
• Input Current: 7 mA (per point)
• Output Voltage Range: 24V DC
• Output Current: 2A (per point), 4A (total for all outputs)
• Processing Speed: 0.08 ms per instruction (typical)
• Memory: Program memory: 1K steps; Data memory: 1K words
• Communication Ports: None (requires additional communication units for network integration)
• Power Supply Voltage: 24V DC
• Current Consumption: 300 mA (typical)
• Operating Temperature Range: 0°C to +55°C
• Storage Temperature Range: -25°C to +70°C
• Dimensions (W x H x D): 90 x 90 x 55 mm
• Weight: Approximately 350 g
• Mounting Type: DIN rail mountable
• Compliance: RoHS compliant
