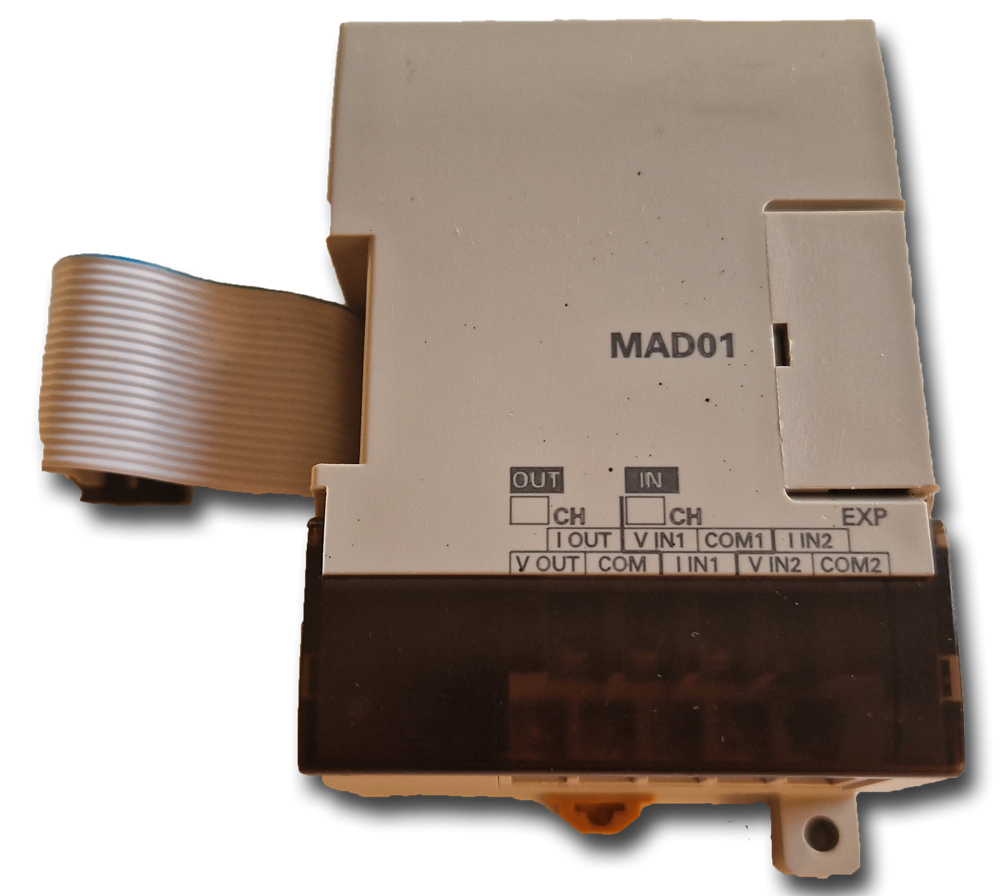

Omron CPM1A-MAD01 ANALOG INPUT OUTPUT MODULE MICRO CONTROLLERS PLC CPM1AMAD01

Description:

CPM1AMAD01 DISCONTINUED BY MANUFACTURER I/O MODULE CPM1A SERIES 2 ANALOG INPUTS 1 ANALOG OUTPUT 4-20 MA DIN RAIL MOUNTABLE The Omron CPM1A-MAD01 is a versatile analog input module designed for integration with the Omron CPM1A programmable logic controller (PLC). This module provides the CPM1A PLC with the capability to process analog signals, making it ideal for applications that require the monitoring and control of varying input signals from analog sensors. With support for both voltage and current inputs, the CPM1A-MAD01 enables precise data acquisition and enhances the PLC’s functionality by converting analog signals into digital data that can be easily processed and utilized within automated systems.

Technical Specifications:

• Type: Analog Input Module
• Number of Channels: 2
• Input Type:
• Voltage: 0-10 V DC or 1-5 V DC
• Current: 4-20 mA
• Input Range:
• Voltage: 0-10 V DC (±1% of full scale)
• Current: 4-20 mA (±1% of full scale)
• Resolution: 12 bits
• Accuracy: ±1% of full scale
• Sampling Rate: 50 ms
• Operating Voltage: Powered by CPM1A PLC (typically 24 V DC)
• Temperature Range: 0°C to +55°C (ambient temperature)
• Protection Rating: Not specified (typically housed within the PLC’s enclosure)
• Compatibility: Designed for use with Omron CPM1A series PLCs
