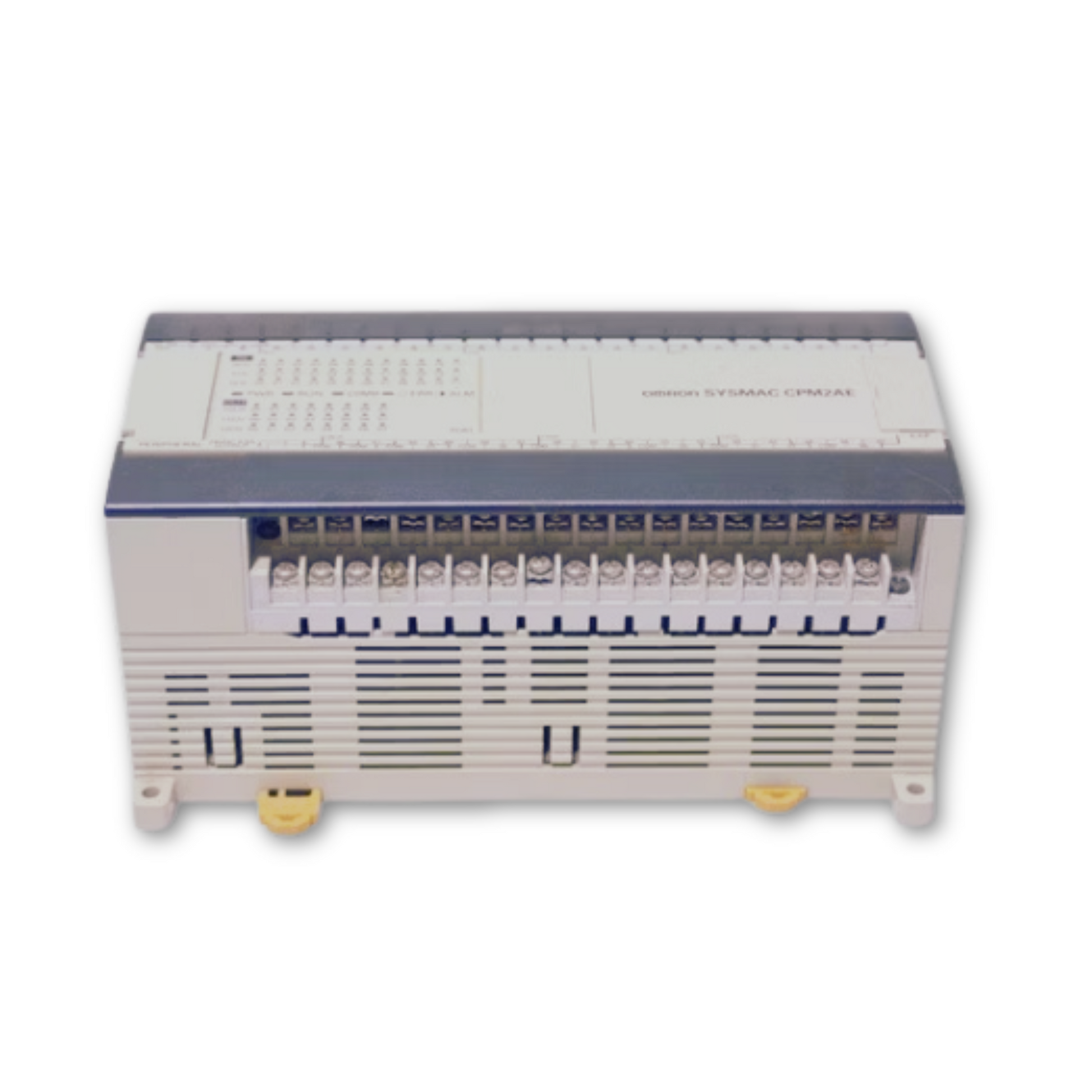

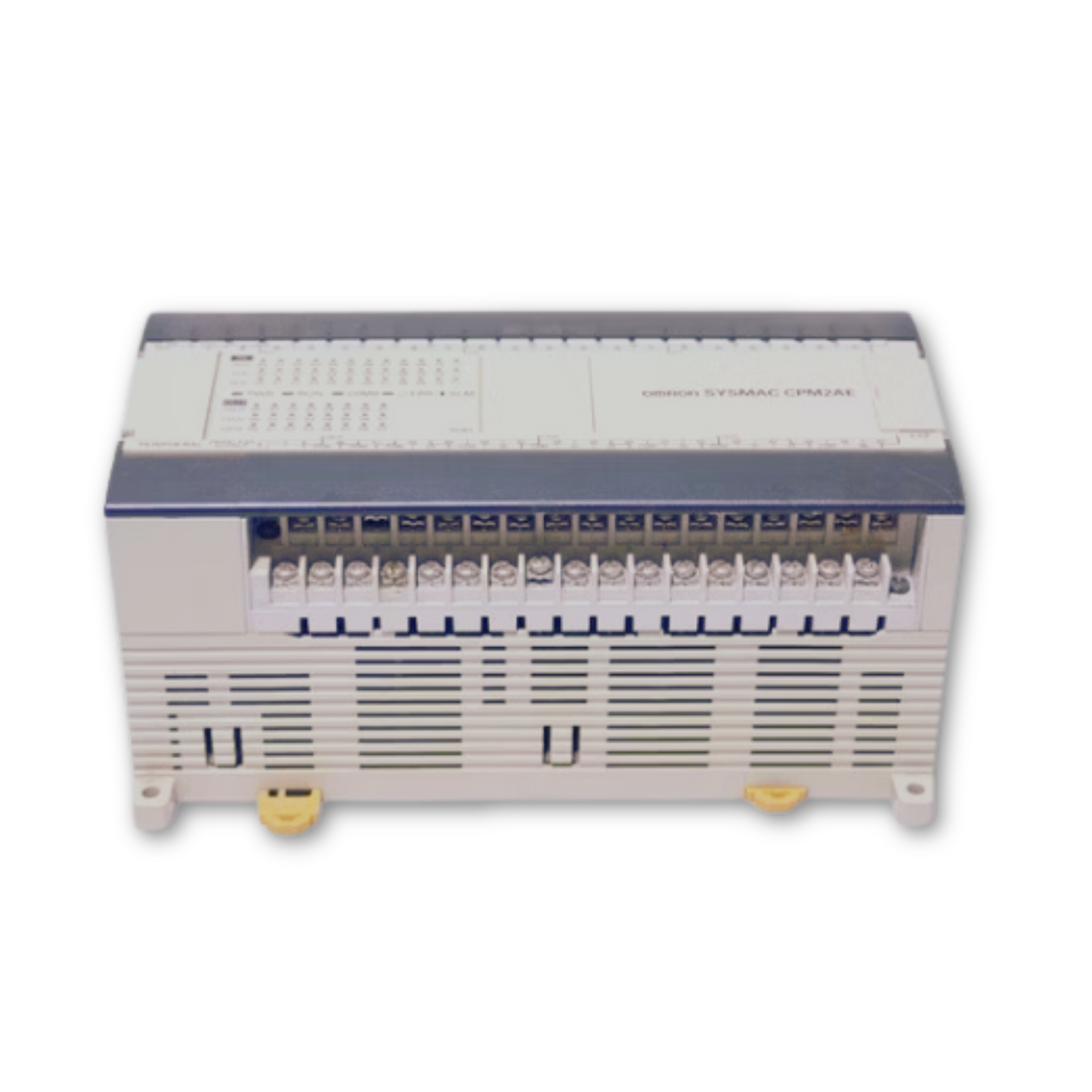

Omron CPM2AE-60CDR-A CPM2AE60CDRA Programmable Logic Controller PLC CPM2AE60CDRA

Description:

CPM2AE60CDRA CPU MODULE 100-240VAC 50/60HZ 60VA The CPM2AE-60CDR-A is a high-performance PLC that combines a compact design with a robust set of features. It includes 60 I/O points, with built-in digital inputs and outputs, and offers flexibility for handling a variety of control and automation applications. Its user-friendly programming and configuration options make it suitable for both simple and moderately complex tasks. The PLC is equipped with essential communication features and supports expansion modules for additional I/O and functionality. It is ideal for use in control panels, small machinery, and various automation systems where space is limited but performance is crucial.

Technical Specifications:

• Model: CPM2AE-60CDR-A
• I/O Configuration:
• Digital Inputs: 24 points (sinking type)
• Digital Outputs: 16 points (sourcing type)
• Analog Inputs: 4 points (0-10V or 4-20mA, depending on configuration)
• Analog Outputs: 2 points (0-10V or 4-20mA, depending on configuration)
• Coil Voltage: 24V DC
• Power Supply:
• Operating Voltage: 24V DC ±10%
• Power Consumption: Approximately 15W
• Processing Speed: Approximately 1 µs per instruction
• Memory:
• Program Memory: 8KB
• Data Memory: 2KB
• Communication Ports:
• Programming Port: Serial RS-232C
• Expansion Ports: Compatible with Omron’s expansion modules for additional I/O or communication options
• Operating Temperature Range: 0°C to +55°C
• Mounting Type: DIN rail mount
• Dimensions: 180 mm x 90 mm x 60 mm (W x H x D)
• Weight: Approximately 0.9 kg
