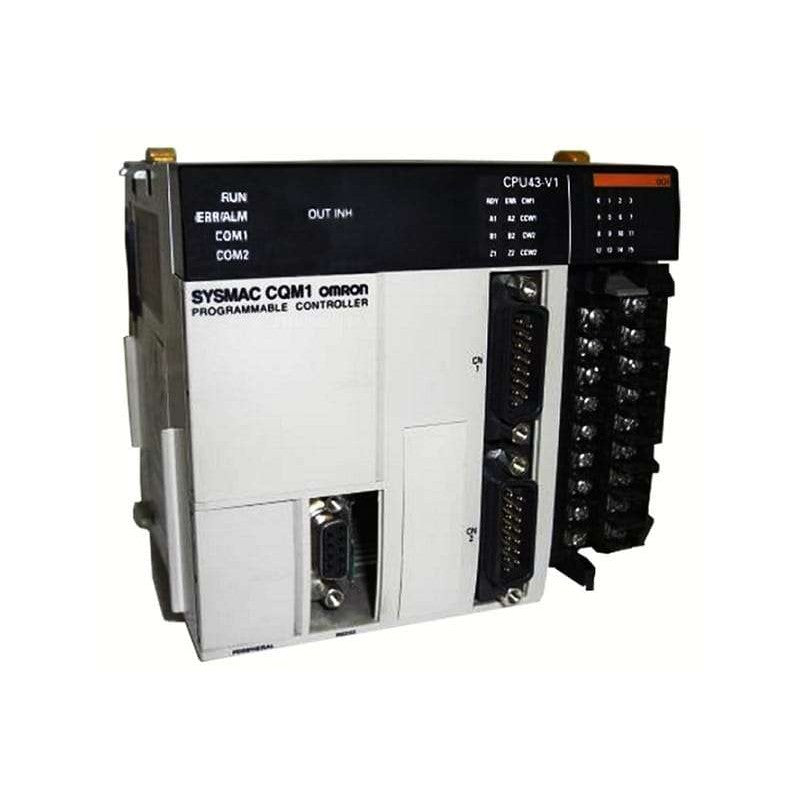

Omron CQM1-CPU43-V1 CPU CONTROLLER PLC MODULE CQM1CPU43V1

Description:

CQM1CPU43V1 DISCONTINUED BY MANUFACTURER CPU MODULE W/ 16POINT INPUT 24VDC The CQM1-CPU43-V1 is a robust and versatile programmable logic controller (PLC) from Omron’s CQM1 series, designed to provide reliable and efficient control for a range of industrial automation applications. This model features a powerful 16-bit CPU that ensures high-speed processing and complex control capabilities. The CQM1-CPU43-V1 supports a variety of input and output modules, allowing for flexible system configuration and expansion. It includes built-in communication ports for easy integration with other devices and supports multiple programming languages, making it suitable for diverse control tasks. The CQM1-CPU43-V1 is ideal for applications requiring advanced control and automation with high performance and reliability.

Technical Specifications:

• Model: CQM1-CPU43-V1
• Processor: 16-bit CPU
• Program Memory: 8 KB
• Data Memory: 2 KB
• I/O Capacity: 64 points (expandable with additional I/O modules)
• Input Types: Digital (sinking/sourcing)
• Output Types: Digital (relay or transistor)
• Communication Ports: 1 built-in RS-232C port for programming and communication; additional ports available with expansion modules
• Programming Languages: Ladder diagram (LD), Function block diagram (FBD), Instruction list (IL)
• Operating Temperature Range: 0°C to +55°C
• Storage Temperature Range: -20°C to +75°C
• Dimensions: 90mm x 90mm x 60mm (W x H x D)
• Weight: Approximately 0.35 kg
• Power Supply: 24V DC (±10%)
• Mounting: DIN rail or panel mount
• Certification: CE, UL
