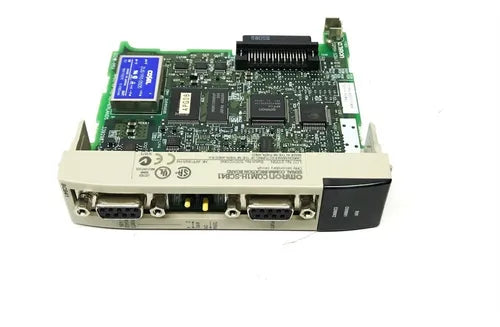

Omron CQM1H-SCB41 PLC COMM COMMUNICATION BOARD PULSE I/O RS232/485

Description:

CQM1HSCB41 COMMUNICATION BOARD CQM1H SERIES PULSE I/O RS232/485 200 MA 19.2 KBIT/S 1:1 DATA LINK NT LINK IN 1:N MODE OR NT LINK IN 1:1 MODE The CQM1H-SCB41 is a high-performance, compact I/O expansion board designed for use with the Omron CQM1H series programmable controllers. This module is engineered to enhance the flexibility and expandability of your automation system, featuring 16 discrete input channels and 16 discrete output channels. It supports a wide range of input and output devices, making it ideal for various industrial applications. The CQM1H-SCB41 is equipped with high-speed data processing capabilities, ensuring reliable and responsive operation in demanding environments. With its easy-to-install design and robust construction, this expansion board integrates seamlessly with existing systems, allowing for efficient control and monitoring of automation processes.

Technical Specifications:

• Model: CQM1H-SCB41
• Type: I/O Expansion Board
• Compatibility: Omron CQM1H series controllers
• Input Channels: 16 discrete inputs
• Output Channels: 16 discrete outputs
• Input Type: Sinking or sourcing, selectable
• Output Type: Relay, transistor, or TRIAC, depending on configuration
• Input Voltage Range: 24V DC
• Output Voltage Range: 24V DC
• Data Processing Speed: High-speed data transfer and processing
• Communication Interface: Directly connects to CQM1H CPU unit via dedicated connectors
• Dimensions (W x H x D): 120 x 90 x 80 mm (approx.)
• Weight: 0.5 kg (approx.)
• Mounting: DIN rail or panel mount
• Environmental Conditions: Operating temperature range of 0°C to 55°C (32°F to 131°F), relative humidity up to 85%
• Certification: CE, UL
