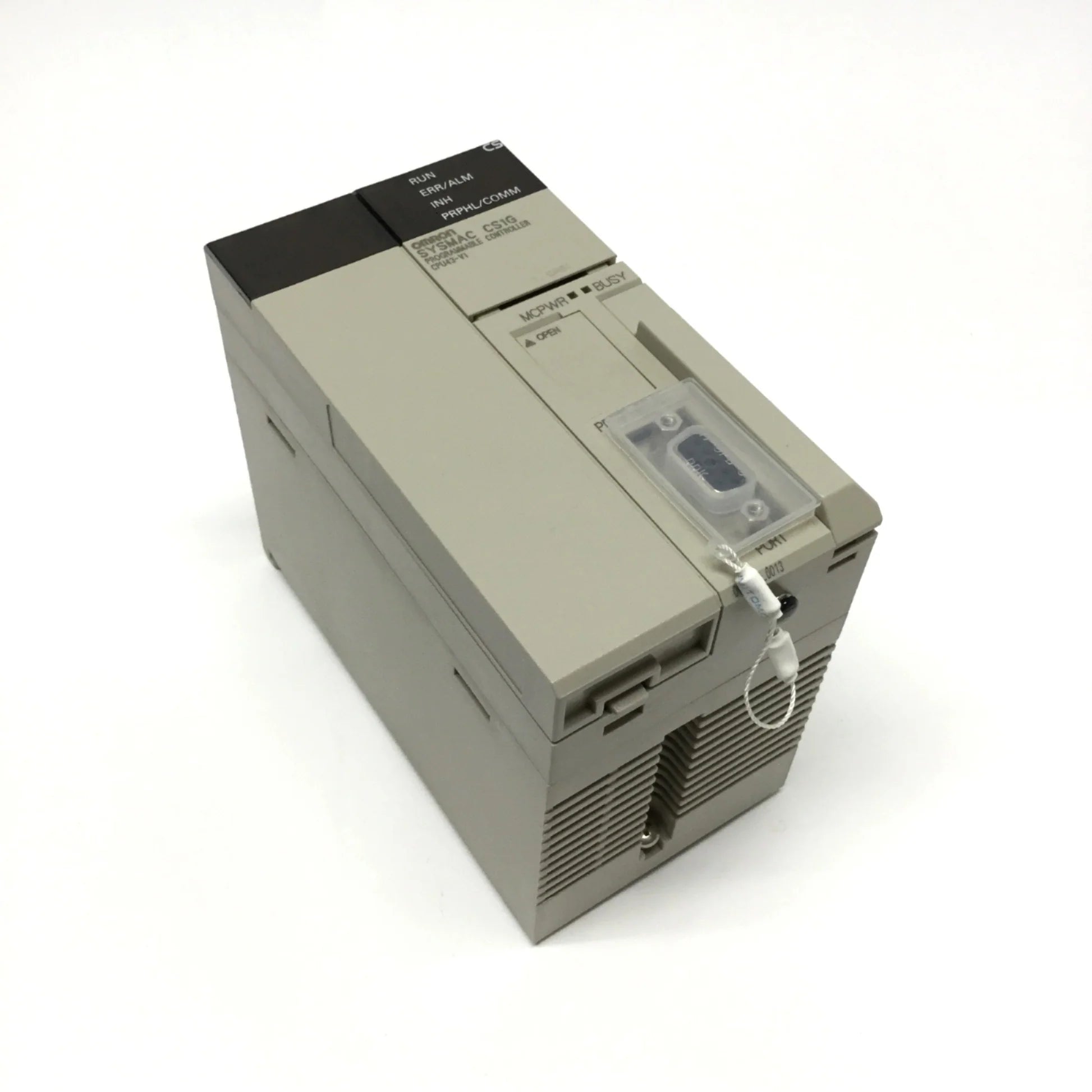

Omron CS1G-CPU43 CS1GCPU43

Description:

CS1GCPU43 DISCONTINUED BY MANUFACTURER CPU MODULE SYSMAC CONTROLLER The CS1G-CPU43 is a high-performance programmable logic controller (PLC) from Omron's CS1G series, designed to handle complex and demanding industrial automation tasks. This model features a powerful 32-bit CPU that provides fast processing speeds and robust control capabilities. It supports a wide range of input and output modules, offering extensive flexibility in system configuration and expansion. The CS1G-CPU43 is equipped with built-in communication ports, including an RS-232C port for programming and communication, and supports various programming languages, making it suitable for diverse automation applications. Its reliable performance, combined with advanced features, makes it ideal for sophisticated control processes in industrial environments.

Technical Specifications:

• Model: CS1G-CPU43
• Processor: 32-bit CPU
• Program Memory: 64 KB
• Data Memory: 32 KB
• I/O Capacity: 256 points (expandable with additional I/O modules)
• Input Types: Digital (sinking/sourcing)
• Output Types: Digital (relay or transistor)
• Communication Ports:
• Built-in: 1 RS-232C port for programming and communication
• Expansion Ports: Additional communication ports available through expansion modules
• Programming Languages: Ladder diagram (LD), Function block diagram (FBD), Instruction list (IL)
• Operating Temperature Range: 0°C to +55°C
• Storage Temperature Range: -20°C to +75°C
• Dimensions: 145mm x 90mm x 65mm (W x H x D)
• Weight: Approximately 0.7 kg
• Power Supply: 24V DC (±10%)
• Mounting: DIN rail or panel mount
• Certification: CE, UL
