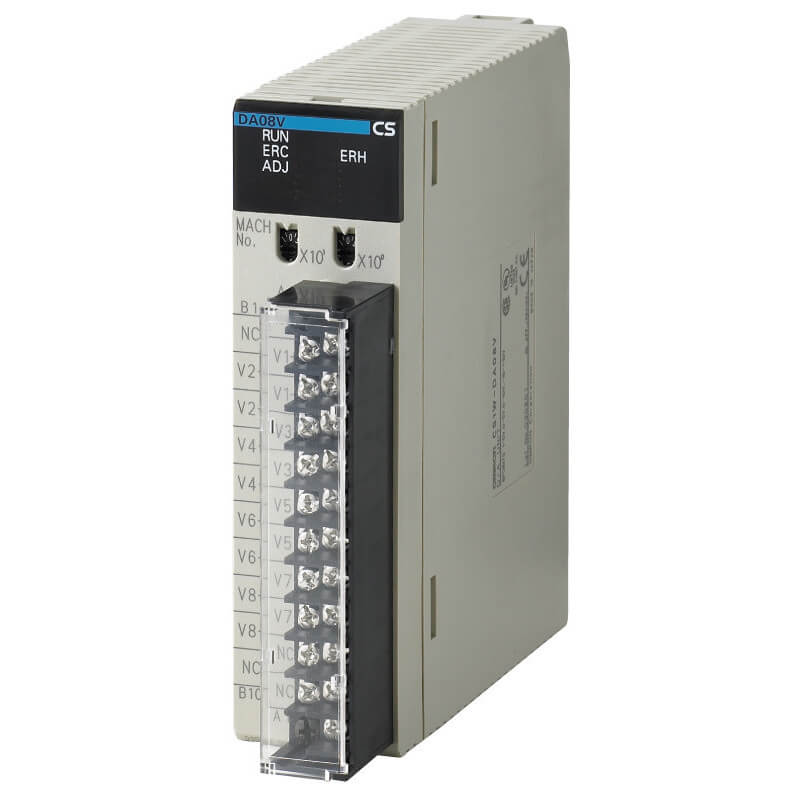

Omron CS1W-DA08V ANALOG I/O UNIT EXPANSION PLC MODULE CS1WDA08V

Description:

The Omron CS1W-DA08V Analog Output Unit is used in CS1 series PLC systems for precise analog signal output and process control applications. Commonly installed in process control systems, manufacturing lines, chemical dosing systems, and temperature or pressure control equipment requiring stable analog output signals. Maintenance teams, OEMs, and system integrators use this part for system expansion, replacement, retrofit, and maintaining accurate control performance.

Applications:

The Omron CS1W-DA08V analog I/O module is used in industrial automation environments for converting digital PLC signals into analog outputs to control external devices. It is widely applied in variable speed drives, control valves, heaters, and instrumentation systems in industries such as manufacturing, water treatment, and process automation where precise analog control is essential.

Technical Specifications:

• Manufacturer Part Number (MPN): CS1W-DA08V
• Product Type: Analog Output Unit (PLC Expansion Module)
• Series: CS1
• Number of Outputs: 8 analog outputs
• Output Type: Voltage output
• Output Range: 0 to 10 V
• Resolution: 1/4000 (approx.)
• Conversion Time: Approx. 1 ms per point
• Isolation: Channel-to-channel isolation
• Mounting Type: Rack-mounted (CS1 PLC system)
• Compatible PLC: Omron CS1 series
• Operating Temperature: 0°C to 55°C

Common Replacements:

• Omron CS1W-DA04V
• Omron CJ1W-DA08V
• Omron CS1W-DA08C
