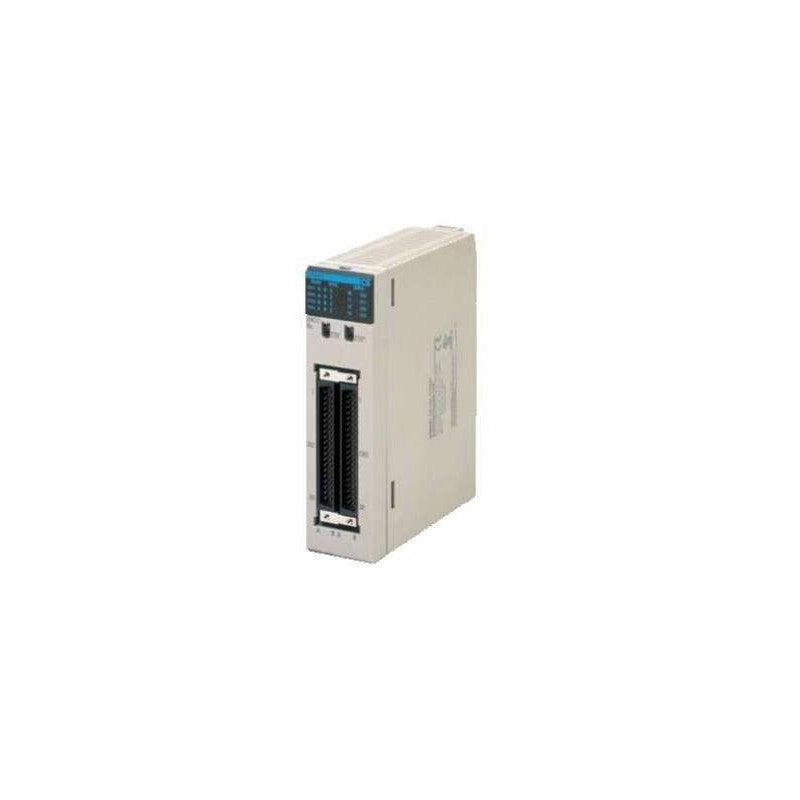

Omron CS1W-NC433 Controllers CS1W Pulse LD Module 4 Axis in CS1WNC433

Description:

The Omron CS1W-NC433 pulse output motion control module is used in Omron CS1 series PLC systems to provide multi-axis positioning and motion control for automation applications. Commonly installed in CNC machines, packaging equipment, robotics, and automated production lines requiring precise multi-axis control. Maintenance teams and system integrators use this part for system expansion, replacement, and enhancing motion control capabilities in PLC-based systems.

Applications:

The Omron CS1W-NC433 motion control module is used in industrial environments for controlling servo motors and stepper motors in positioning, indexing, and synchronized motion applications. It is widely applied in assembly machines, material handling systems, semiconductor equipment, and precision manufacturing processes where accurate multi-axis motion control is essential.

Technical Specifications:

• Manufacturer Part Number (MPN): CS1W-NC433
• Product Type: PLC Motion Control Module (Pulse Output Unit)
• Series: CS1W Series
• Number of Axes: 4-axis control
• Control Method: Pulse output (positioning control)
• Output Type: Pulse train outputs for servo/stepper drives
• Compatible PLC: Omron CS1 series
• Positioning Functions: Linear interpolation, speed control, positioning
• Connection Type: Terminal block
• Mounting Type: PLC rack mount
• Power Supply: Supplied via PLC backplane
• Indicators: LED status indicators
• Operating Temperature: 0°C to +55°C

Common Replacements:

• Omron CJ1W-NC433
• Omron CS1W-NC413
• Omron NX-PF0630
