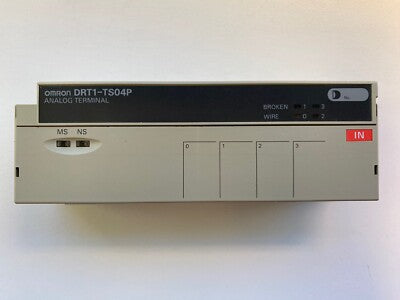

Omron DRT1-TS04P TEMPERATURE CONTROL ANALOG INPUT TERMINAL PLC MODULE DRT1TS04P

Description:

The Omron DRT1-TS04P Temperature Input Terminal is an analog input module used in Omron DeviceNet/DRT1 series automation systems. Commonly installed in distributed control setups to acquire temperature data from sensors and transmit it to PLCs for processing. Maintenance teams, OEMs, and system integrators use this module for replacement, retrofit, and precise temperature monitoring in industrial environments.

Applications:

The Omron DRT1-TS04P Temperature Input Terminal is used in industrial automation systems requiring accurate temperature measurement, including process control, manufacturing lines, HVAC systems, and thermal monitoring applications. It is ideal for applications that demand distributed I/O architecture, reduced wiring, and reliable temperature data acquisition across networks.

Technical Specifications:

• Brand: Omron
• Part Number: DRT1-TS04P
• Product Type: Temperature Input Module (Analog Input Terminal)
• Series: DRT1 (DeviceNet Remote I/O)
• Number of Inputs: 4 temperature input channels
• Input Type: Platinum resistance thermometer (RTD)
• Supply Voltage: 24 V DC
• Conversion Cycle: Approx. 250 ms (4 channels)
• Temperature Range: -20°C to +60°C (operating)
• Mounting Type: DIN rail or screw mounting
• Terminal Type: M3 screw terminal block
• Protection Rating: IP20
• Weight: Approx. 0.17 kg
• Functions: Scaling, comparator, and data processing features
• Lifecycle Status: Discontinued / obsolete
• Application: Distributed temperature monitoring and process control

Common Replacements:

• Omron DRT2-TS04P
• Omron CRT1-TS04P
• Omron NX-TS2101
