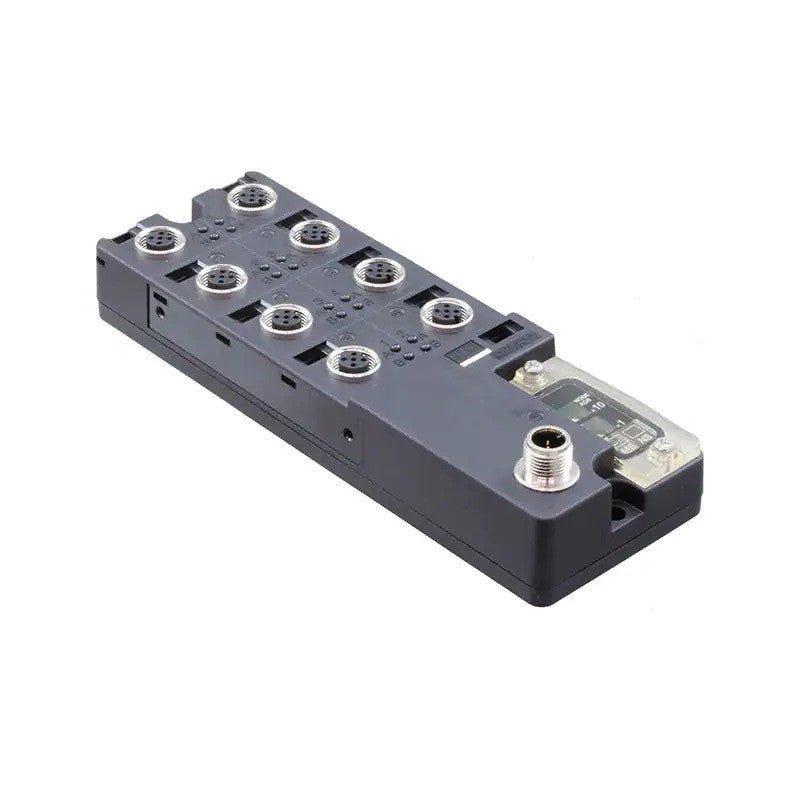

Omron DRT2-HD16C Remote I/O Terminal DRT2HD16C

Description:

The Omron DRT2-HD16C remote I/O terminal is used in industrial automation systems to provide distributed digital input functionality over DeviceNet networks. Commonly installed in control panels, conveyor systems, packaging machines, and production lines requiring decentralized input signal acquisition. Maintenance teams and system integrators use this part for system expansion, replacement, and enabling flexible remote monitoring in automated systems.

Applications:

The Omron DRT2-HD16C remote terminal is used in industrial environments for collecting signals from sensors, switches, and field devices via networked PLC systems. It is widely applied in factory automation, material handling systems, assembly lines, and process equipment where distributed I/O architecture improves wiring efficiency and system scalability.

Technical Specifications:

• Manufacturer Part Number (MPN): DRT2-HD16C
• Product Type: Remote I/O Terminal (Digital Input Unit)
• Series: DRT2 Series
• Communication Protocol: DeviceNet
• Input Points: 16 inputs
• Input Type: DC digital inputs
• Rated Input Voltage: 24 VDC
• Input Current: Approx. 7 mA per point
• Connection Type: MIL connector / screw terminal (model dependent)
• Mounting Type: DIN rail mount
• Power Supply: External 24 VDC supply
• Isolation: Photocoupler isolation
• Indicators: LED status indicators for each input
• Operating Temperature: 0°C to +55°C

Common Replacements:

• Omron DRT2-ID16
• Omron DRT2-MD16
• Omron CJ1W-ID211
