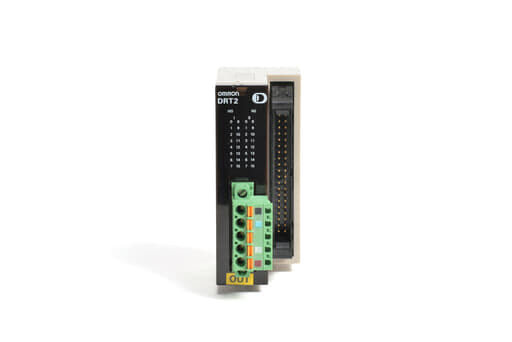

Omron DRT2-OD32ML Remote Terminal DRT2OD32ML

Description:

The Omron DRT2-OD32ML remote I/O terminal is used in industrial automation systems to provide distributed transistor output control over DeviceNet networks. Commonly installed in control panels, conveyor systems, packaging machines, and production lines requiring high-density remote output control. Maintenance teams and system integrators use this part for system expansion, replacement, and enabling flexible decentralized control in automated systems.

Applications:

The Omron DRT2-OD32ML remote terminal is used in industrial environments for controlling actuators, solenoids, and other output devices via networked PLC systems. It is widely applied in factory automation, material handling systems, assembly lines, and process equipment where distributed I/O architecture helps reduce wiring complexity and improve system scalability.

Technical Specifications:

• Manufacturer Part Number (MPN): DRT2-OD32ML
• Product Type: Remote I/O Terminal (Transistor Output Unit)
• Series: DRT2 Series
• Communication Protocol: DeviceNet
• Output Points: 32 outputs
• Output Type: Transistor (NPN)
• Rated Voltage: 24 VDC
• Rated Current: Approx. 0.3 to 0.5 A per point (model dependent)
• Connection Type: Screw terminal / MIL connector (model dependent)
• Mounting Type: DIN rail mount
• Power Supply: External 24 VDC supply
• Protection Features: Short circuit protection, overload protection
• Indicators: LED status indicators for each output
• Operating Temperature: 0°C to +55°C

Common Replacements:

• Omron DRT2-OD16
• Omron DRT2-MD32ML
• Omron CJ1W-OD231
