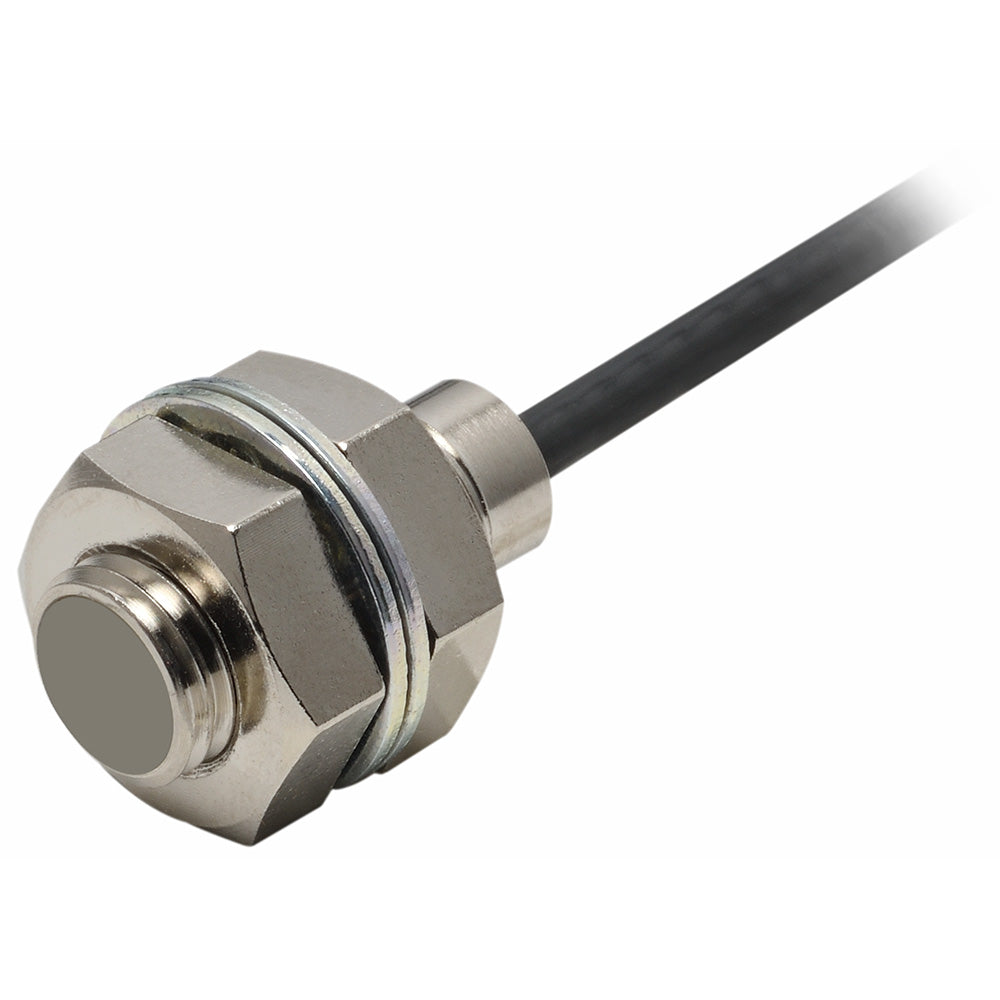

Omron E2C-X1R5AH Photoelectric Switch E2CX1R5AH

Description:

The Omron E2C-X1R5AH Photoelectric Switch is used in industrial automation systems for non-contact object detection and position sensing. Commonly installed in packaging machines, conveyor systems, assembly lines, and material handling equipment requiring precise and reliable detection. Maintenance teams, OEMs, and system integrators use this part for sensor replacement, retrofit, and maintaining consistent detection performance in automated systems.

Applications:

The Omron E2C-X1R5AH photoelectric sensor is used in industrial environments to detect the presence, absence, or position of objects without physical contact. It is widely applied in automated production lines, sorting systems, packaging equipment, and inspection systems where accurate sensing and fast response are essential for efficient operation.

Technical Specifications:

• Manufacturer Part Number (MPN): E2C-X1R5AH
• Product Type: Photoelectric Switch Sensor
• Series: E2C
• Sensing Method: Reflective photoelectric sensing
• Sensing Distance: Approx. 1.5 mm
• Output Type: NPN transistor output
• Supply Voltage: 12–24 VDC
• Response Time: High-speed response
• Light Source: LED
• Connection Type: Pre-wired cable
• Mounting Type: Panel or bracket mount
• Protection Rating: IP64
• Operating Temperature: -10°C to 55°C

Common Replacements:

• Omron E2C-X2AH
• Omron E2C-EDA11
• Omron E3Z-D61
