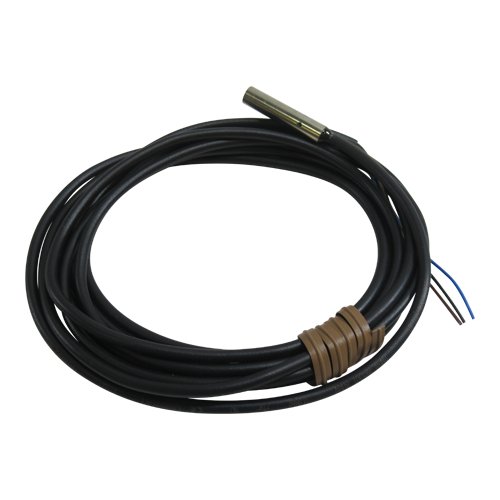

Omron E2E-C05S01-WC-B1

Description:

E2EC05S01WCB12M PROXIMITY SENSOR E2E SMALL DIAMETER CYLINDRICAL/SMOOTH 5.4MM DIAMETER SHIELDED 1MM SENSING DISTANCE PRE-WIRED MODEL DC 3-WIRE PNP OPEN-COLLECTOR NORMALLY OPEN PVC CABLE 2 METER LENGTH The E2E-C05S01-WC-B1 is a compact and efficient inductive proximity sensor from Omron, designed to provide reliable detection of metallic objects in a variety of industrial automation applications. With a sensing distance of up to 5 mm, this sensor features a cylindrical design with a 12 mm diameter, making it ideal for applications where space is limited. The E2E-C05S01-WC-B1 offers a PNP output type and is built to withstand harsh environments, ensuring dependable performance in detecting the presence or absence of metal objects.

Technical Specifications:

• Model: E2E-C05S01-WC-B1
• Type: Inductive Proximity Sensor
• Sensing Distance: 5 mm (standard sensing distance for metal targets)
• Diameter: 12 mm
• Output Type: PNP
• Connection Type: 3-wire (DC)
• Operating Voltage Range: 10-30V DC
• Output Current: 200 mA maximum
• Response Time: Approximately 1 ms
• Operating Temperature Range: -25°C to 70°C
• Storage Temperature Range: -30°C to 80°C
• Protection Rating: IP67 (dust-tight and water-resistant)
• Housing Material: Stainless steel (SUS303)
• Mounting Type: Flush mount (cylindrical design)
• Connection Cable Length: 2 meters (standard)
