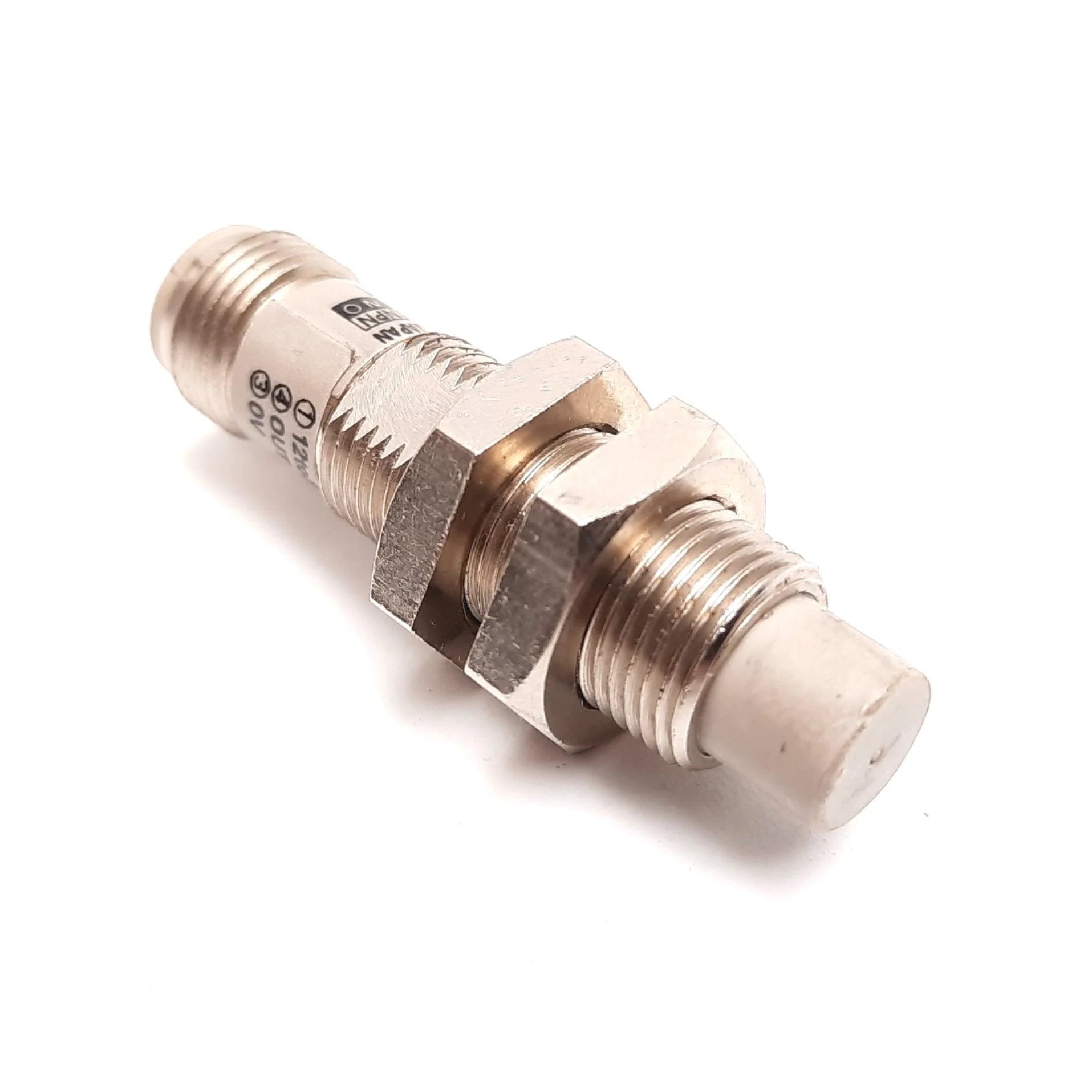

OMRON E2E-X5ME1-M1 PROXIMITY SWITCH 12-24VDC

Description:

The Omron E2E‑X5ME1‑M1 proximity switch is used in industrial automation systems to detect the presence of metal targets without contact and provide reliable signaling. Commonly installed in conveyor systems, packaging equipment, assembly lines, and machining centers for position sensing and object detection. Maintenance teams and system integrators use this sensor for machine automation upgrades, system repairs, and replacement of worn or failed proximity switches.

Applications:

The Omron E2E‑X5ME1‑M1 sensor is widely used in metal detection and presence sensing applications in factory automation. It is commonly found in material handling systems, robotic cells, CNC machines, packaging machines, and automated production lines where fast and repeatable detection of metal parts is critical for part counting, safety interlocks, and process sequencing.

Technical Specifications:

• Sensor type: Inductive proximity sensor (digikey.com)
• Sensing distance: 5 mm (typical) (digikey.com)
• Supply voltage: 12–24 VDC (10–30 VDC) (omron.com)
• Output type: NPN normally open (NO), 3‑wire
• Output current: ≤ 200 mA
• Response frequency: ~400 Hz
• Cable type: Pre‑wired 2 m cable
• Housing thread: M12 x 1 cylindrical body
• Protection rating: IP67 (dust and water resistant)
• Operating temperature: –25°C to +70°C
• Indicator: Built‑in LED for operation detection
• Construction: Nickel‑plated brass body with molded sensing face
• Mounting: Threaded cylindrical mounting for easy installation

Common Replacements:

• Omron E2E‑X5MF1
• Omron E2E‑X5MC1
• Pepperl+Fuchs NJ5‑12GK‑E2
