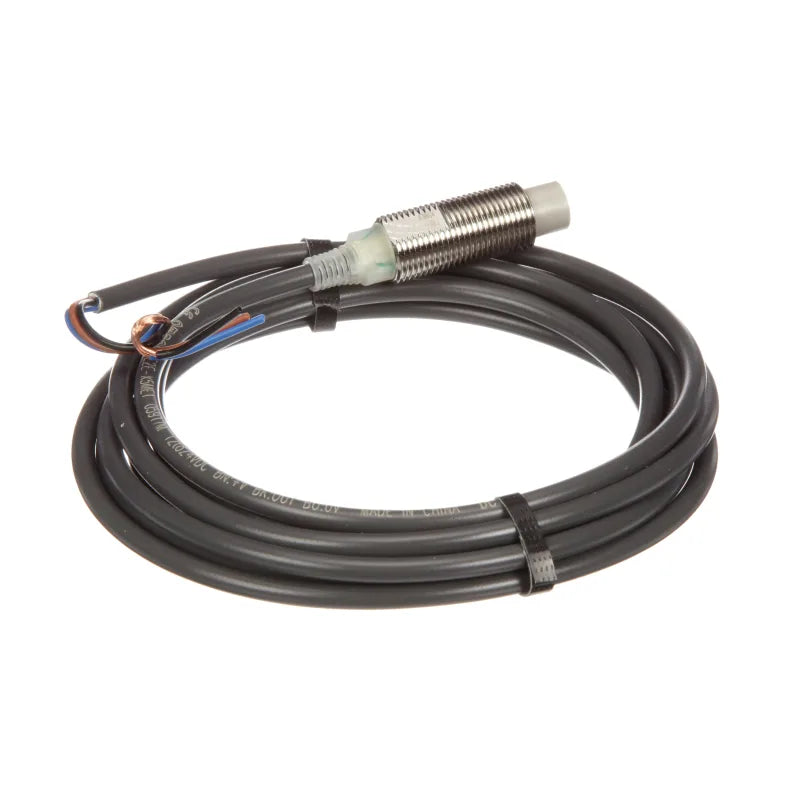

OMRON E2E-X5ME1 PROXIMITY SWITCH 12 TO 24 VDC, E2EX5ME1

Description:

The Omron E2E‑X5ME1 inductive proximity switch is used in industrial automation systems to detect the presence of metal objects without physical contact and provide reliable switching signals. Commonly installed in conveyor systems, packaging equipment, robotic cells, and automated assembly lines for position sensing and object detection. Maintenance teams and system integrators use this sensor for automation upgrades, system diagnostics, and replacement of failed or worn proximity switches.

Applications:

The Omron E2E‑X5ME1 sensor is widely used in factory automation environments requiring dependable non‑contact metal detection. It is commonly found in material handling systems, pick‑and‑place machines, CNC equipment, packaging lines, and safety interlock systems where accurate and repeatable sensing of metallic targets supports process control, sequencing, and efficient machine operation.

Technical Specifications:

• Sensor type: Inductive proximity switch
• Model: E2E‑X5ME1
• Supply voltage: 12–24 VDC (10–30 VDC operating range)
• Output type: NPN normally open (NO), 3‑wire
• Sensing distance: 5 mm
• Output current: ≤ 200 mA
• Response frequency: ~400 Hz
• Housing thread: M12 cylindrical
• Protection rating: IP67 (dust and water resistant)
• Cable length: 2 m pre‑wired
• Operating temperature: –25 °C to +70 °C
• Housing material: Nickel‑plated brass body
• Indicator: Built‑in LED operation indicator

Common Replacements:

• Omron E2E‑X5MF1
• Autonics PR18‑8DN
• Pepperl+Fuchs NJ18‑18GK‑E2
