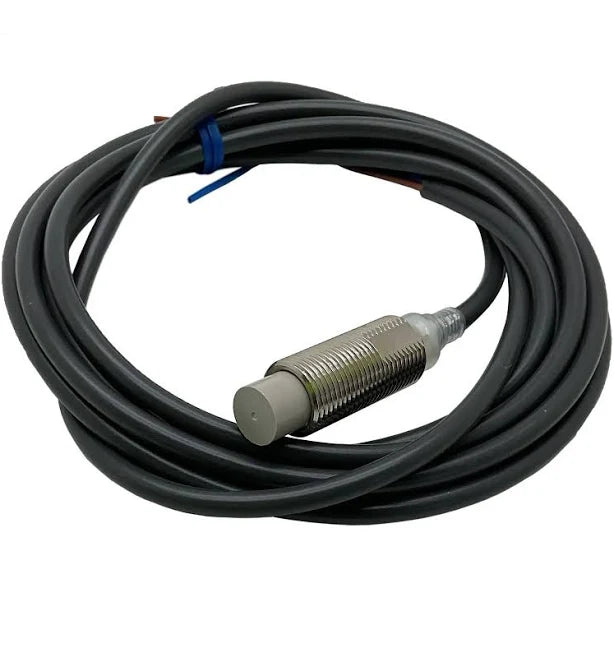

Omron E2E-X5ME1 Proximity Switch Sensor 12-24VDC

Description:

The Omron E2E-X5ME1 inductive proximity sensor is used in industrial automation systems to detect the presence of metal objects without physical contact. Commonly installed in CNC machines, conveyor systems, packaging equipment, and automated production lines for position sensing and object detection. Maintenance teams and system integrators use this sensor for system reliability, automation upgrades, and replacement of worn or failed proximity switches.

Applications:

The Omron E2E-X5ME1 sensor is widely used in automation environments requiring non-contact detection of metallic objects. It is commonly found in material handling systems, assembly lines, robotics, and packaging machinery where consistent and fast detection is critical for sequencing, positioning, and safety interlocks in industrial processes.

Technical Specifications:

• Sensor type: Inductive proximity sensor
• Sensing distance: 5 mm
• Supply voltage: 12–24 VDC (10–30 VDC operating range)
• Output type: NPN, normally open (NO), 3-wire
• Output current: Up to 200 mA
• Response frequency: Approx. 400 Hz
• Housing type: Cylindrical threaded (M12)
• Shielding: Unshielded (non-flush mount)
• Protection rating: IP67
• Cable length: 2 meters (pre-wired)
• Operating temperature: -40°C to 85°C
• Housing material: Nickel-plated brass with PBT sensing face
• Indicator: Built-in LED operation indicator
• Sensing target: Ferrous metals (reduced sensitivity for non-ferrous)

Common Replacements:

• Omron E2E-X5MC112
• Omron E2E-X5ME1-Z
• Omron E2E-X5MF1
