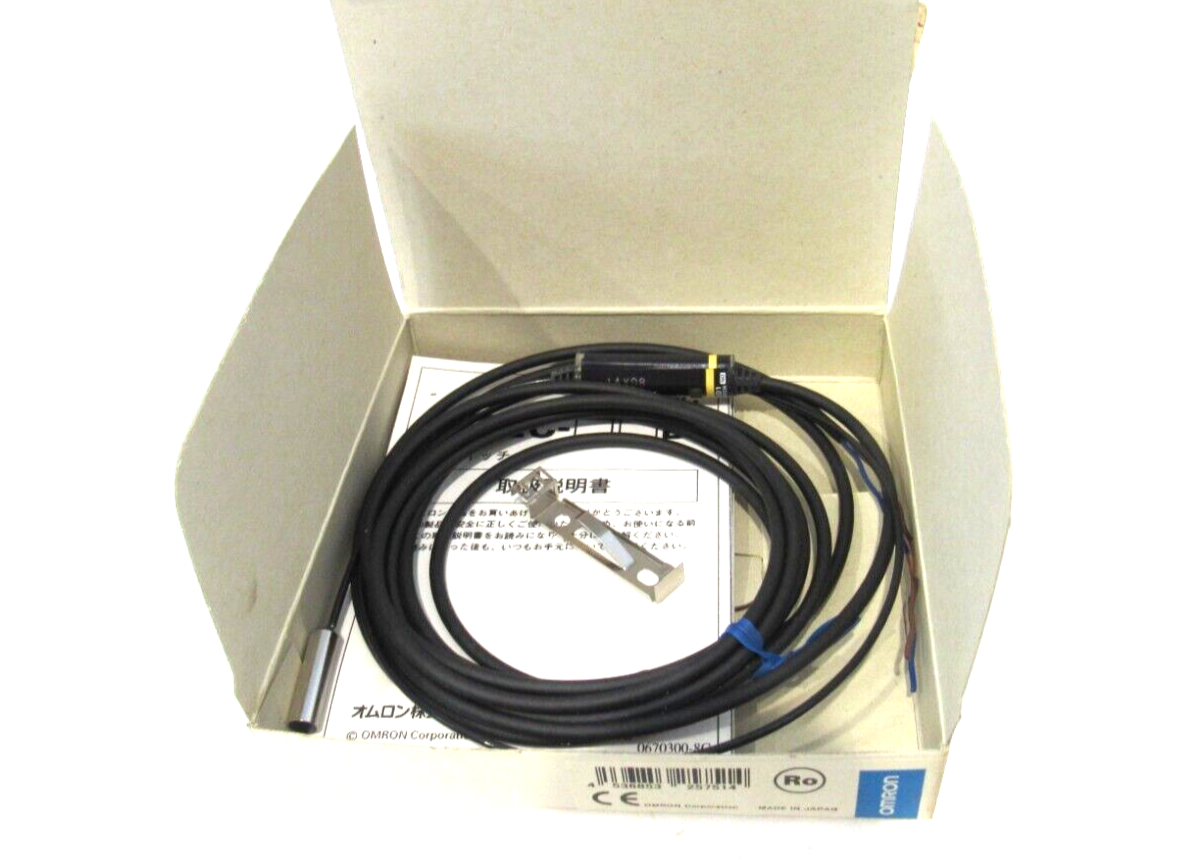

Omron E2EC-C1R5D1 Proximity Switch Sensor E2ECC1R5D1

Description:

E2ECC1R5D1 PROX 5.4MM IN-LINE AMP DC2W The E2EC-C1R5D1 is a reliable and compact inductive proximity sensor from Omron, designed to provide precise non-contact detection of metallic objects. With a sensing range of up to 1.5 mm, this sensor is ideal for applications where space is limited and high accuracy is required. Its durable construction and stainless steel housing ensure long-term performance and resistance to harsh industrial environments, making it suitable for a variety of automation and control tasks.

Technical Specifications:

• Type: Inductive Proximity Sensor
• Sensing Range: Up to 1.5 mm
• Output Type: NPN or PNP transistor output (selectable)
• Operating Voltage: 10-30 V DC
• Response Time: 1 ms
• Operating Temperature Range: -25°C to 70°C
• Protection Rating: IP67 (dust-tight and water-resistant)
• Housing Material: Stainless steel
