Omron E2EC-CR8D2 2M

Description:

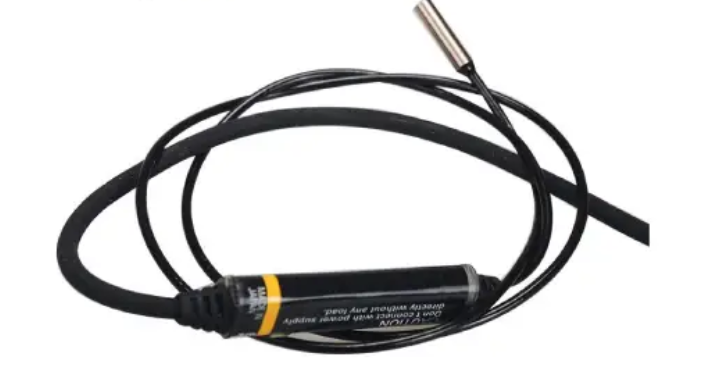

E2ECCR8D2 PROXIMITY SENSOR SUB MINIATURE 3MM DIAMETER 0.8 MM SENSING RANGE IN-LINE AMPLIFIER DC 2WIRE NC The Omron E2EC-CR8D2 is a cylindrical inductive proximity sensor engineered to detect metal objects with high reliability in industrial environments. Featuring a sensing distance of 8 mm and a rugged design, this sensor ensures dependable performance in applications where space is limited and high accuracy is required. Its non-contact sensing method reduces wear and tear, extending the sensor's lifespan and maintaining consistent performance over time.

Technical Specifications:

• Type: Inductive Proximity Sensor
• Sensing Distance: 8 mm (non-flush mounting)
• Output Type: NPN/PNP (selectable)
• Operating Voltage: 10-30 V DC
• Current Consumption: 15 mA max
• Response Frequency: 1 kHz
• Switching Capacity: 100 mA max
• Protection Rating: IP67 (dust-tight and water-resistant)
• Temperature Range: -25°C to +70°C
• Body Material: Stainless Steel (SUS303 for durability)
• Mounting Type: Non-Flush
• Connection Type: 2m cable or M8 Connector (depending on the variant)
