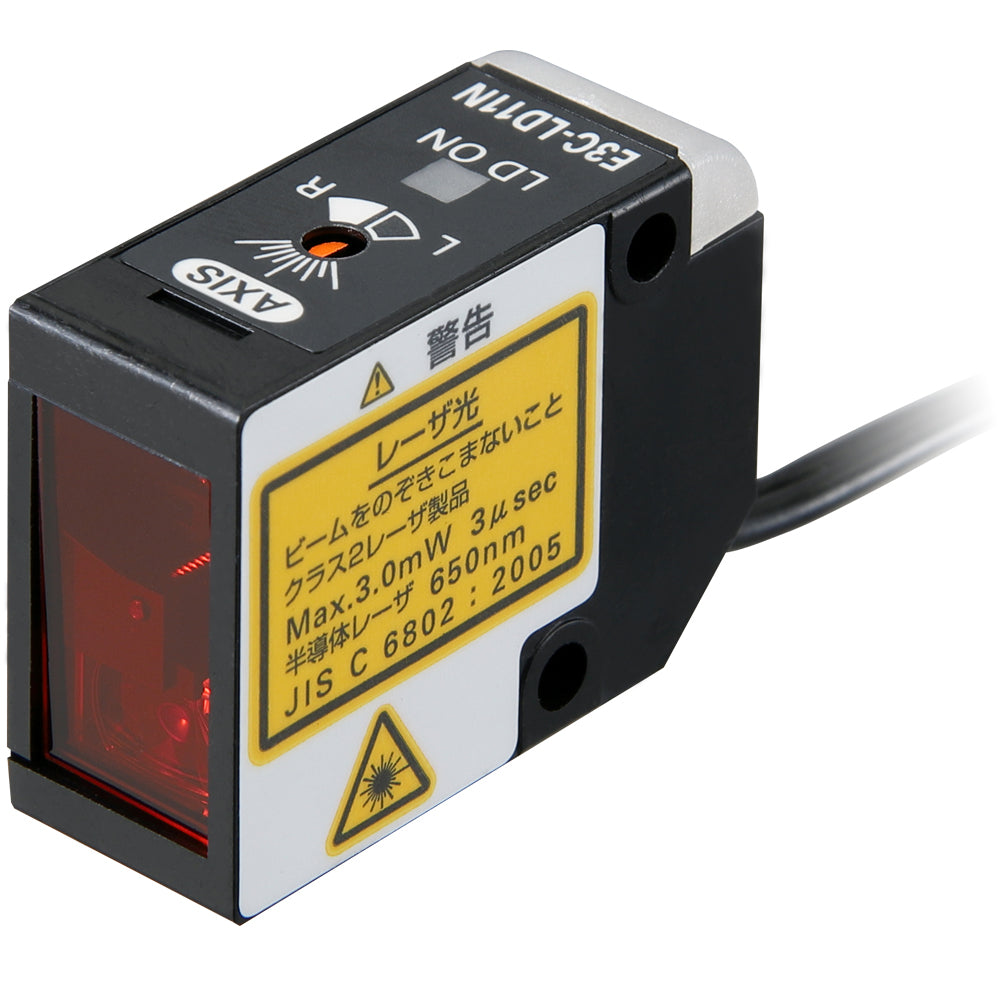

Omron E3C-LD11 Photoelectric Sensor E3CLD11

Description:

E3CLD112M PHOTOELECTRIC SENSOR DIFFUSE RELECTIVE 30 MM RANGE RED SEMICONDUCTOR LASER DIODE The Omron E3C-LD11 is a compact and highly accurate laser displacement sensor designed for precise measurement of distance and object detection in various industrial applications. This sensor utilizes laser technology to provide reliable and stable measurements even in challenging environments, making it ideal for applications such as thickness measurement, position control, and surface profiling. With its high-resolution output and robust construction, the E3C-LD11 ensures consistent performance and durability, making it suitable for use in automated machinery and quality control processes.

Technical Specifications:

• Model Number: E3C-LD11
• Type: Laser Displacement Sensor
• Sensing Range: 0 to 50 mm
• Measurement Accuracy: ±0.05 mm (typical)
• Resolution: 0.01 mm
• Output Type: Analog (0-10 V) or Digital (IO-Link)
• Supply Voltage: 12-24 V DC ±10%
• Current Consumption: 80 mA (max)
• Response Time: 1 ms (typical)
• Protection Rating: IP67
• Operating Temperature: 0°C to 50°C
• Dimensions: Ø30 mm x 75 mm (diameter x length)
• Weight: Approximately 150 g
