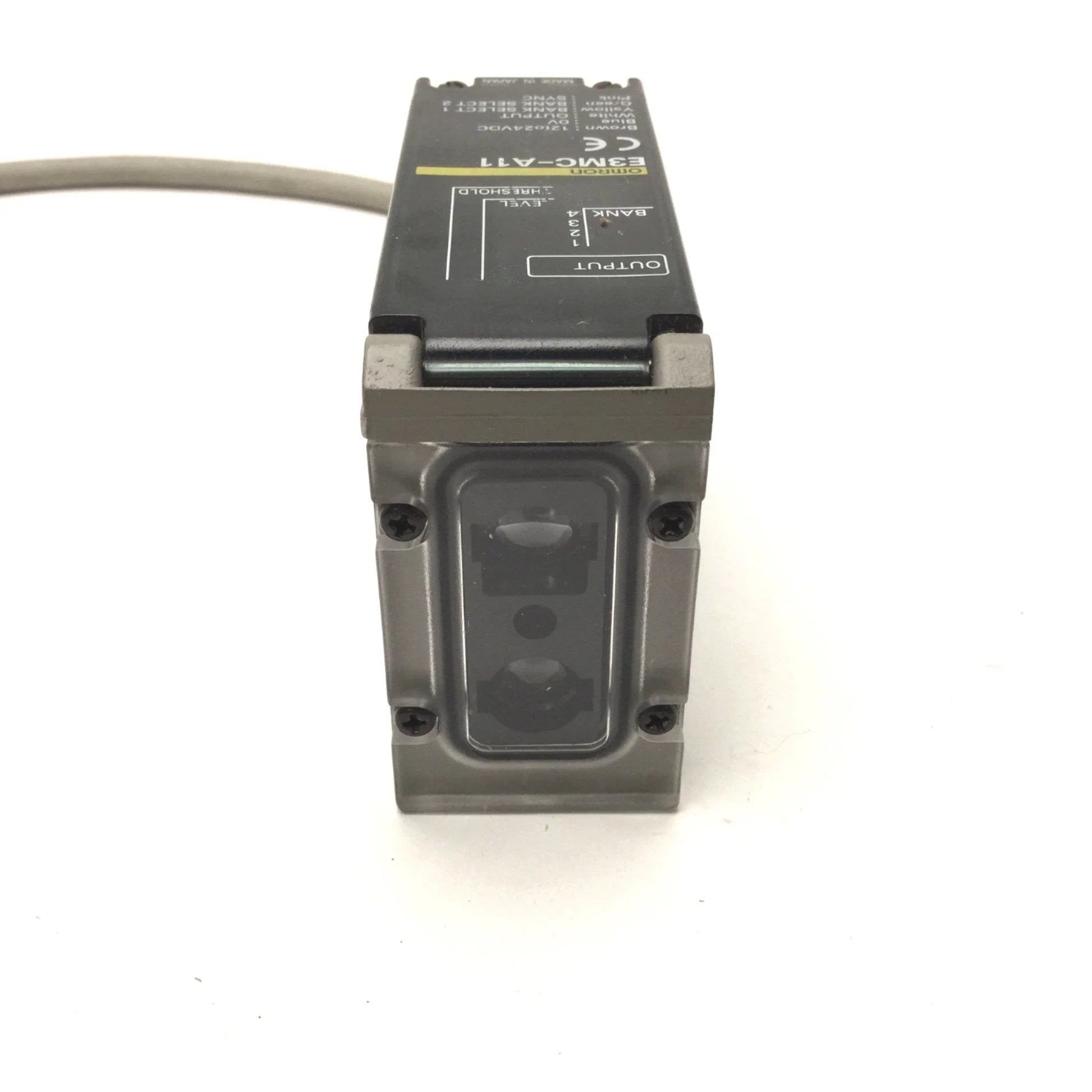

Omron E3MC-A11 E3MC-A11

Description:

Photoelectric Sensors RGB BUILT-IN AMP NPN OUTPT TYP The Omron E3MC-A11 is a high-performance photoelectric sensor designed for precise object detection in industrial environments. This sensor features a compact and rugged design, making it suitable for a variety of automation applications where reliable detection is crucial. It utilizes infrared light to detect objects over a range of up to 30 cm, offering stable and accurate performance. The E3MC-A11's durable construction and IP67 protection rating ensure it operates effectively in harsh conditions, including those with dust and moisture. This sensor is ideal for applications such as part counting, positioning, and presence detection in manufacturing processes.

Technical Specifications:

• Model Number: E3MC-A11
• Type: Photoelectric Sensor (Diffuse reflective type)
• Sensing Distance: Up to 30 cm (depending on the target size and reflectivity)
• Output Type: NPN or PNP (depending on configuration)
• Supply Voltage: 12-24 V DC ±10%
• Current Consumption: 30 mA (max)
• Response Time: 1 ms (typical)
• Protection Rating: IP67
• Operating Temperature: -25°C to 55°C
• Dimensions: Ø30 mm x 56 mm (diameter x length)
• Weight: Approximately 100 g
