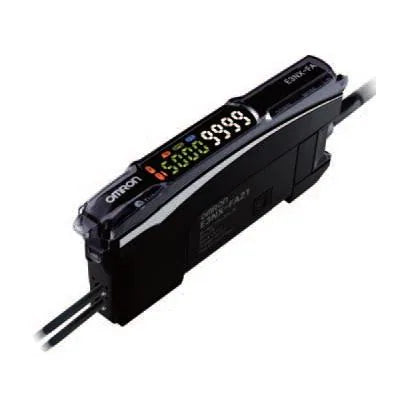

Omron E3NX-FA51 2m E3NXFA51 2m

Description:

The E3NX-FA51 2m  is an advanced digital fiber optic amplifier from Omron, engineered for high-speed and high-precision sensing applications. This amplifier is part of Omron's E3NX series, known for its exceptional performance and user-friendly operation. The E3NX-FA51 2m  offers fast response times, high sensitivity, and a range of smart functions, making it ideal for detecting small or fast-moving objects in complex industrial environments. Its compact design and intuitive interface simplify installation and setup, while the dual digital display provides clear visibility of both the current threshold and incident light levels. This amplifier is perfect for applications in electronics manufacturing, packaging, and automation where precision and reliability are paramount.

Technical Specifications:

• Model: E3NX-FA51 2m
• Power Supply Voltage: 12 to 24V DC
• Sensing Method: Through-beam, retro-reflective, and diffuse-reflective (depending on the fiber unit used)
• Response Time: 50 μs (high-speed mode), 250 μs (standard mode)
• Display: Dual digital display (red/green) for easy monitoring
• Sensitivity Adjustment: Auto-tuning, manual adjustment, and teaching modes
• Output Type: NPN/PNP (depending on model version)
• Output Capacity: 100 mA max. at 24V DC
• Communication Interface: IO-Link (optional for enhanced data communication)
• Ambient Temperature Range: -25°C to 55°C
• Protection Rating: IP50 (amplifier unit)
• Compatible Fiber Units: E32 series
• Dimensions: 10mm (width) x 71mm (height) x 58.5mm (depth)
• Weight: Approximately 85g
• Compliance: CE, UL, and RoHS certified.
