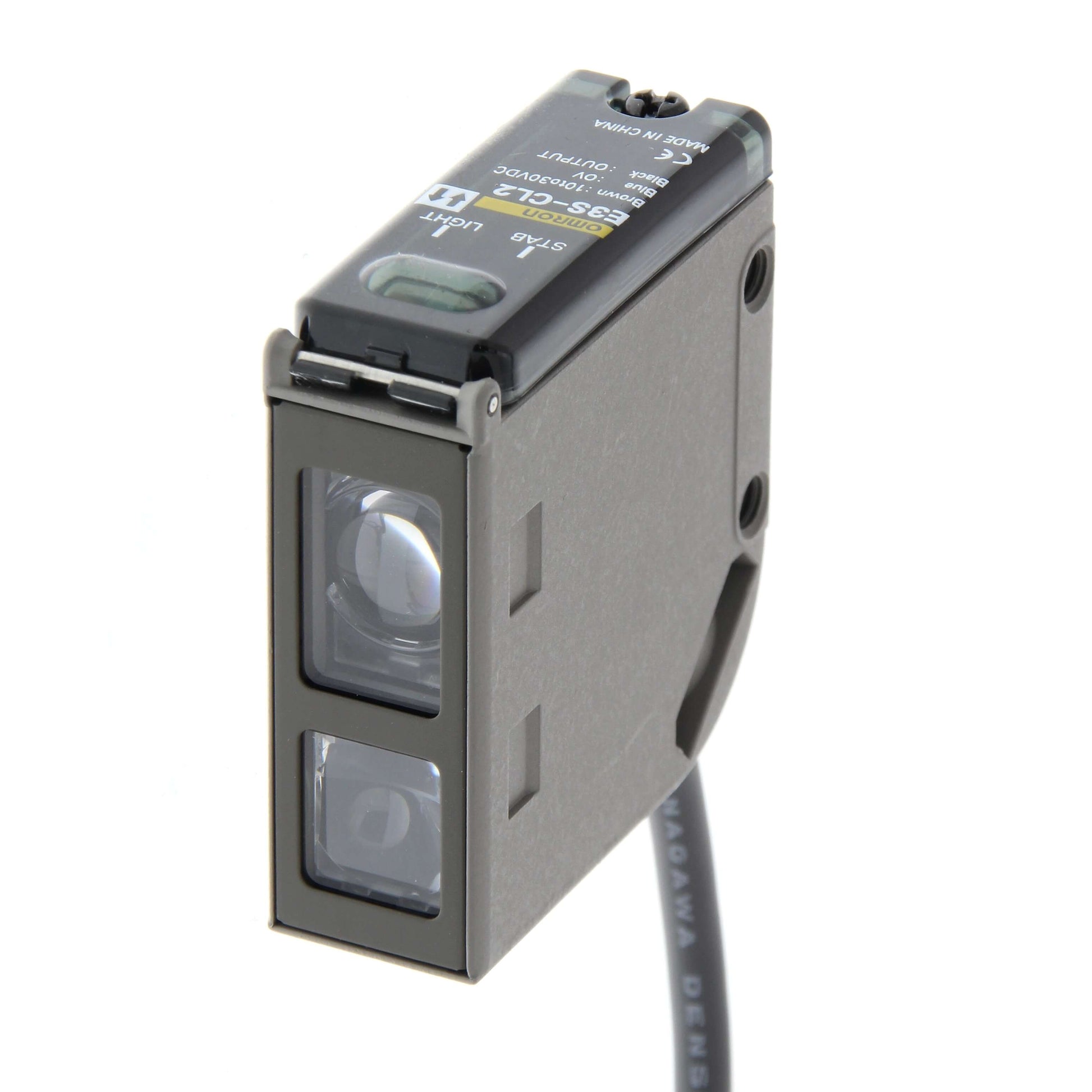

Omron E3S-CL2 Diffuse Photoelectric Sensor Switch E3SCL2

Description:

E3SCL2 PHOTOELECTRIC SENSOR 50CM ADJ SENSING DIST NPN/PNP The E3S-CL2 is a compact and high-performance photoelectric sensor from Omron’s E3S series, designed to deliver precise and reliable object detection in a variety of industrial automation applications. Featuring a versatile sensing range and advanced optical technology, the E3S-CL2 provides accurate detection of both reflective and diffuse objects, making it suitable for various challenging environments. Its compact and robust design ensures easy installation and durability, even in harsh industrial settings.

Technical Specifications:

• Model: E3S-CL2
• Type: Photoelectric Sensor
• Detection Type: Reflective and diffuse
• Sensing Range: Up to 5 meters (depends on reflector type and environmental conditions)
• Output Type: NPN/PNP transistor output (selectable)
• Response Time: 1 ms
• Power Supply: 12-24V DC
• Operating Temperature: -25 to 55°C
• Dimensions: 50 x 30 x 13 mm (approximate)
• Weight: 40 g (approximate)
• Protection Class: IP67
• Mounting: Bracket mountable
• Features: High sensitivity, compact design, robust construction
