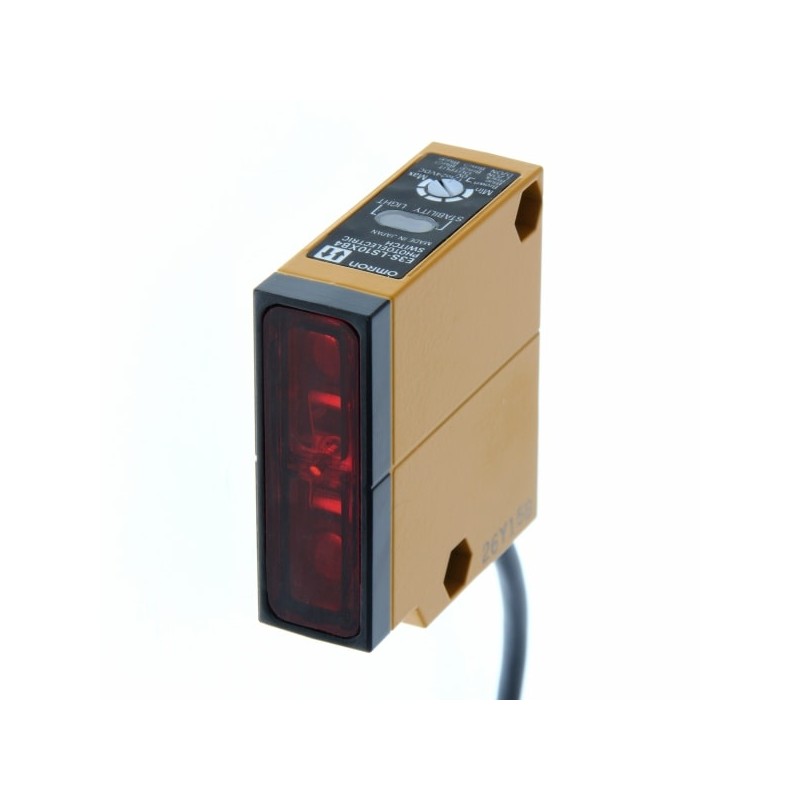

Omron E3S-LS10XE4 Photoelectric Switch E3SLS10XE4

Description:

The Omron E3S-LS10XE4 Photoelectric Switch is a convergent-reflective optical sensor with a built-in amplifier, designed for precise object detection in industrial automation systems. Commonly installed in machinery and control setups to detect small objects, edges, or position changes with high accuracy. Maintenance teams, OEMs, and system integrators use this sensor for replacement, retrofit, and reliable detection in demanding industrial environments.

Applications:

The Omron E3S-LS10XE4 Photoelectric Sensor is used in industrial automation systems requiring accurate object detection, including packaging machines, conveyor systems, assembly lines, and quality inspection processes. It is ideal for applications that demand narrow-field detection, background suppression, and reliable sensing of small or closely spaced objects.

Technical Specifications:

• Brand: Omron
• Part Number: E3S-LS10XE4
• Product Type: Photoelectric Sensor (Convergent-Reflective)
• Series: E3S-LS
• Sensing Method: Convergent-reflective (narrow vision field)
• Sensing Distance: 30 to 100 mm adjustable
• Light Source: Red LED (660 nm)
• Supply Voltage: 12–24 V DC
• Output Type: NPN transistor output (Light-ON/Dark-ON selectable)
• Response Time: Approx. 1 ms
• Current Consumption: 40 mA max
• Connection Type: Pre-wired cable (2 m)
• Protection Rating: IP67
• Operating Temperature: -25°C to 55°C
• Housing Material: Metal (die-cast)
• Features: Background suppression, sensitivity adjustment, stability indicator
• Application: Precise object detection and position sensing

Common Replacements:

• Omron E3S-LS20XE4
• Omron E3Z-LS61
• Omron E3ZM-LS61
