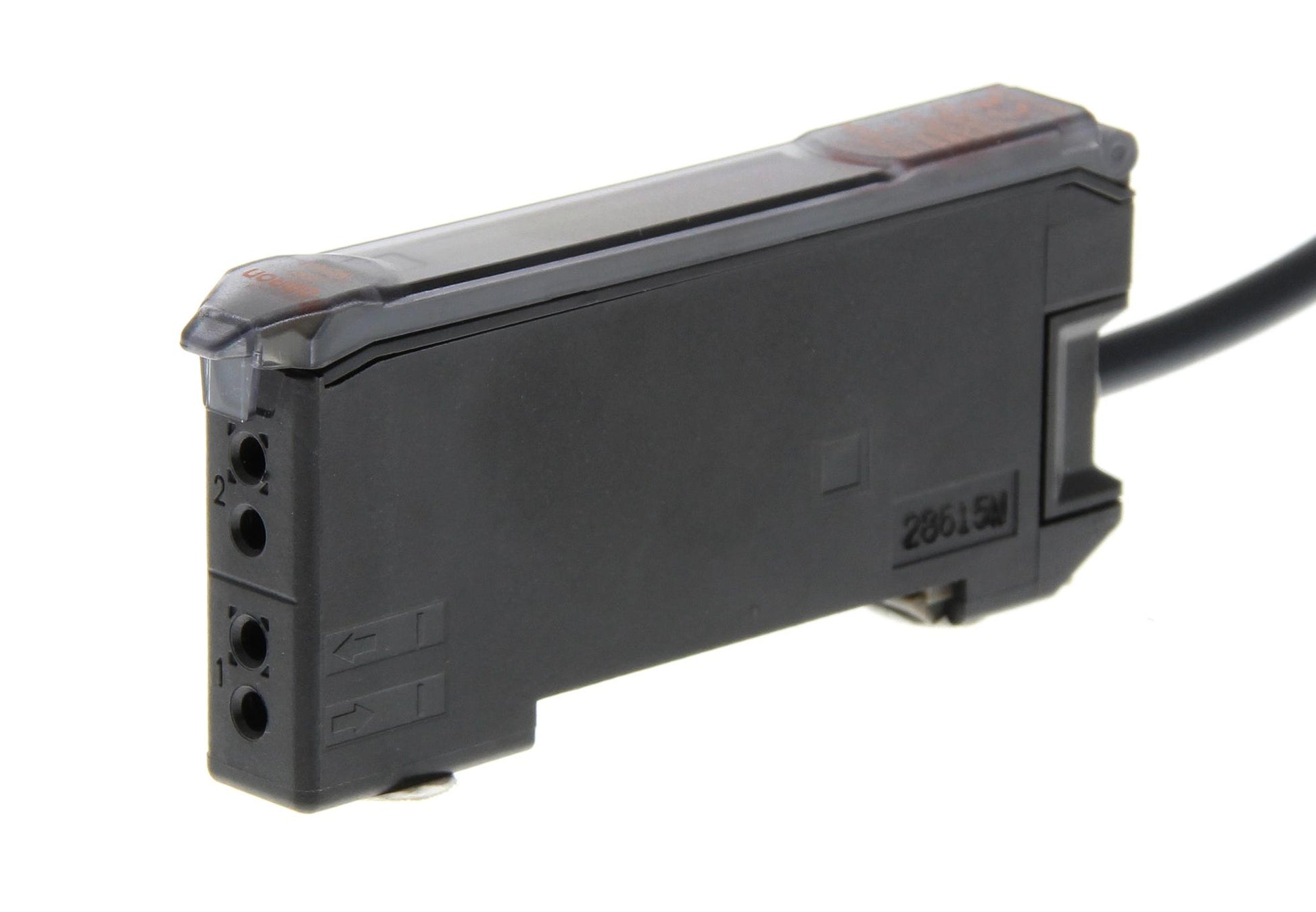

Omron E3X-MDA11 Photoelectric Sensor E3XMDA11

Description:

E3XMDA11 DISCONTINUED BY MANUFACTURER PHOTOELECTRIC SENSORS DUAL FIBER AND/OR RED LED 12TO 24 VDC (MAX.) 130 MUS PBT PC The Omron E3XMDA11 is a compact and high-performance photoelectric sensor designed for precise object detection in industrial automation applications. Featuring a robust, compact housing and advanced detection capabilities, this sensor is ideal for applications where space is limited but reliable detection is essential. The E3XMDA11 offers a long sensing range, high resistance to ambient light, and immunity to electrical noise, ensuring consistent performance in various environments. It is equipped with a diffuse-reflective sensing mode, making it suitable for detecting objects regardless of their shape, color, or surface finish.

Technical Specifications:

• Type: Photoelectric Sensor
• Detection Method: Diffuse Reflective
• Sensing Distance: 0.1 to 2 meters
• Output Type: NPN/PNP (selectable)
• Response Time: 1 ms
• Operating Voltage: 12-24 VDC
• Current Consumption: 30 mA or less
• Output Current: 100 mA (max)
• Housing Material: ABS
• Protection Rating: IP67
• Temperature Range: -25°C to +55°C
• Weight: Approximately 100 grams
