Omron

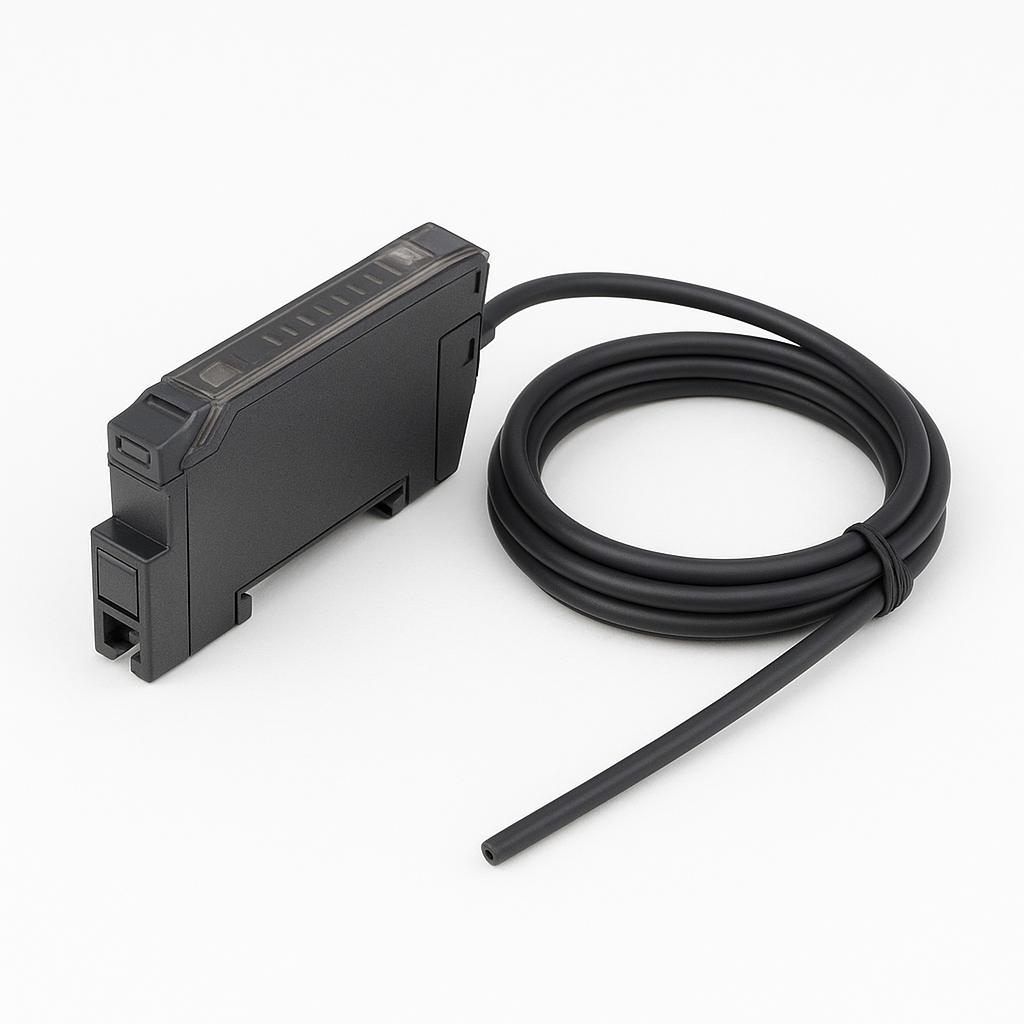

Omron E3X-NA21 Photoelectric Sensors E3XNA21
Omron E3X-NA21 Photoelectric Sensors E3XNA21
Couldn't load pickup availability
Description:
E3XNA21 DISCONTINUED BY MANUFACTURER PHOTOELECTRIC SENSOR DIGITAL FIBER AMPLIFIER STANDARD W/ BAR GRAPH DISPLAY RED 4-ELEMENT LED (625 NM) 12 TO 24 VDC The E3X-NA21 is an advanced fiber optic amplifier designed to enhance the performance of fiber optic sensors in various industrial applications. This versatile amplifier provides precise and reliable detection of small objects or minute changes in reflective surfaces. It features a user-friendly interface with a clear LCD display for easy configuration and monitoring, and offers high-speed processing with a response time as fast as 0.5 milliseconds. The E3X-NA21 supports a wide range of fiber optic sensors, making it adaptable to diverse sensing needs while ensuring consistent performance in challenging environments.
Technical Specifications:
- Type: Fiber Optic Amplifier
- Detection Range: Compatible with various fiber optic sensors
- Response Time: 0.5 ms
- Operating Voltage: 24V DC ±10%
- Output Type: NPN, PNP (selectable)
- Current Load: 100 mA (max)
- Display: LCD
- Sensitivity Adjustment: Yes (via front panel)
- Protection Rating: IP40
- Temperature Range: 0°C to +55°C
- Connection: M12 Connector
