Omron
Omron E3Z-B62-M1J E3ZB62M1J
Omron E3Z-B62-M1J E3ZB62M1J
Couldn't load pickup availability
Description:

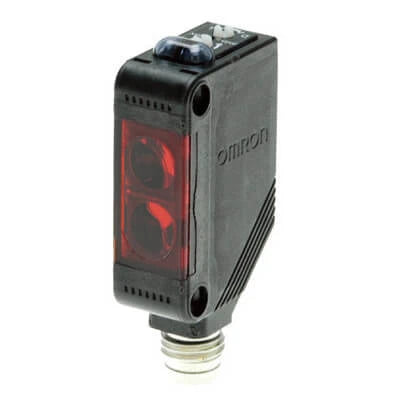

Model E3Z-B62-M1J MPN E3Z-B62-M1J Brand Omron The E3Z-B62-M1J is a compact and highly versatile photoelectric sensor designed for precise and reliable object detection in various industrial applications. This sensor utilizes a diffuse reflective sensing method, allowing it to detect objects up to 2 meters away without requiring a separate reflector. It is equipped with advanced optical technology that enhances detection reliability and minimizes false triggers. The E3Z-B62-M1J features a durable, IP67-rated housing, ensuring robust performance in harsh environments, and offers simple, intuitive adjustments for sensitivity and output configuration.
Technical Specifications:
- Type: Photoelectric Sensor
- Detection Method: Diffuse Reflective
- Sensing Distance: Up to 2 meters
- Output Type: NPN/PNP (selectable)
- Response Time: 1 ms
- Operating Voltage: 12-24 VDC
- Current Consumption: 30 mA or less
- Output Current: 100 mA (max)
- Housing Material: Plastic (ABS)
- Protection Rating: IP67
- Temperature Range: -25°C to +55°C
- Mounting: Standard bracket
- Weight: Approximately 50 grams
