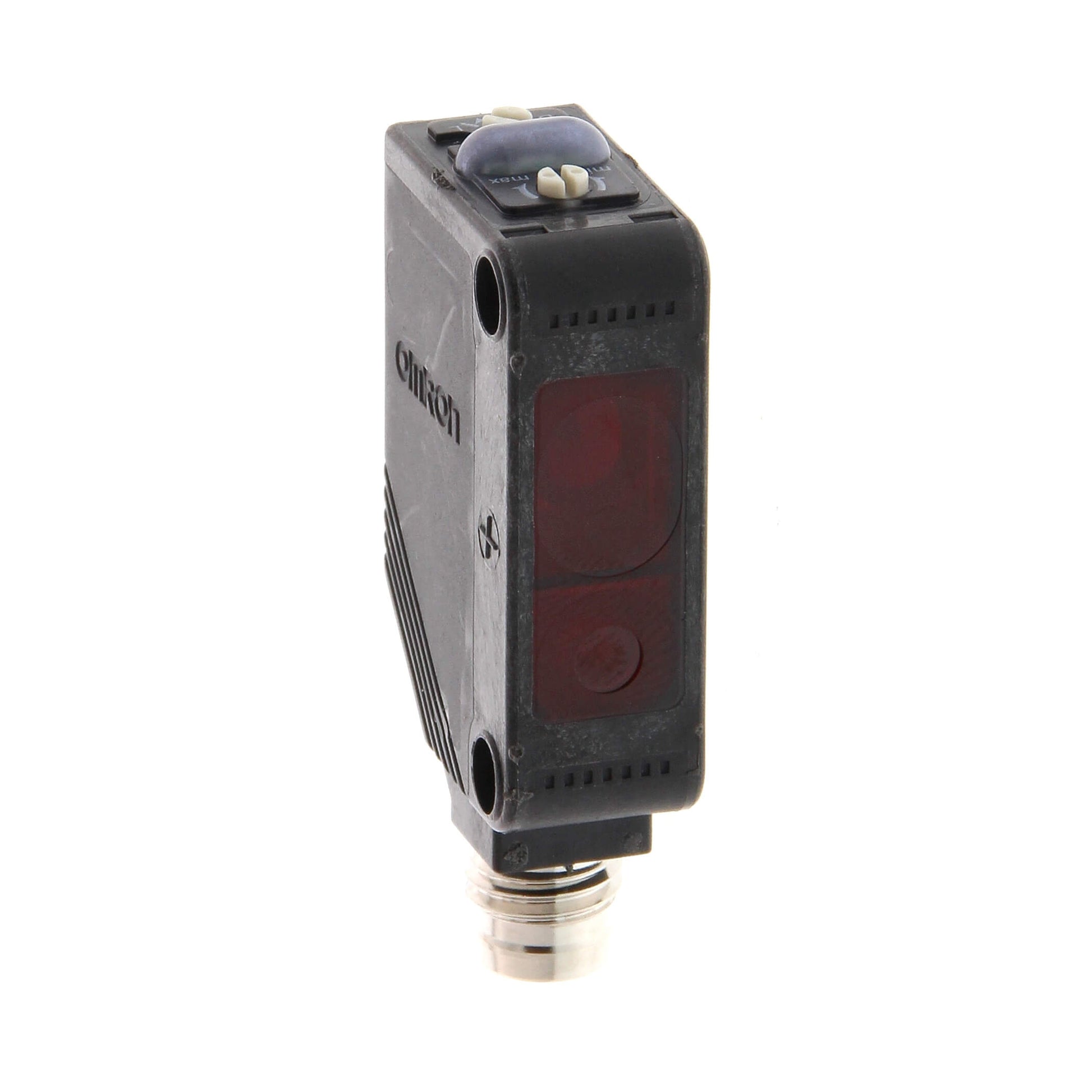

Omron E3Z-LL86 12-24VDC Photoelectric Switch E3ZLL86

Description:

The Omron E3Z-LL86 Photoelectric Switch is used in industrial sensing systems for reliable object detection using diffuse reflective sensing. Commonly installed in packaging machines, conveyor systems, sorting lines, and automated production equipment. Maintenance teams and system integrators use this part for replacement, retrofit, and improving detection performance in automation processes.

Applications:

The Omron E3Z-LL86 is utilized in industrial environments requiring accurate and stable object detection. It is widely applied in material handling systems, bottling lines, labeling machines, and assembly processes where non-contact sensing ensures efficient operation and reduces mechanical wear.

Technical Specifications:

• Manufacturer Part Number (MPN): E3Z-LL86 / E3ZLL86
• Product Type: Photoelectric Switch (Diffuse Reflective)
• Series: Omron E3Z Series
• Supply Voltage: 12 to 24 VDC
• Sensing Method: Diffuse reflective
• Light Source: Visible red LED
• Sensing Distance: Up to 200 mm (model dependent)
• Output Type: NPN output
• Response Time: Fast response
• Protection Rating: IP67
• Connection Type: Pre-wired cable
• Mounting Type: Bracket / panel mount
• Operating Temperature: -25°C to 55°C

Common Replacements:

• Omron E3Z-D61
• Omron E3Z-LS86
• Omron E3Z-R61
