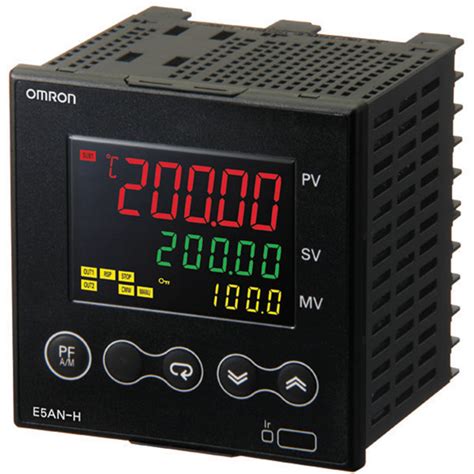

Omron E5AN-C3QMT-500-N TEMPERATURE CONTROLLER 100-240V AC E5ANC3QMT500N

Description:

The Omron E5AN-C3QMT-500-N Digital Temperature Controller is a panel-mounted PID controller used in industrial temperature control systems. Commonly installed in control panels, ovens, and process equipment to regulate temperature using sensor feedback and advanced control algorithms. Maintenance teams, OEMs, and system integrators use this controller for replacement, retrofit, and precise thermal process control.

Applications:

The Omron E5AN-C3QMT-500-N Temperature Controller is used in industrial automation systems requiring accurate temperature regulation, including plastic molding machines, furnaces, packaging equipment, and process heating applications. It is ideal for applications that demand stable PID control, reliable sensor input handling, and consistent performance in continuous operation.

Technical Specifications:

• Brand: Omron
• Part Number: E5AN-C3QMT-500-N
• Product Type: Digital Temperature Controller (PID)
• Series: E5AN
• Supply Voltage: 100–240 V AC
• Control Method: PID control and ON/OFF control
• Input Type: Universal (thermocouple, RTD, analog voltage/current)
• Indication Accuracy: ±0.3% (TC), ±0.2% (RTD), ±0.2% FS (analog)
• Sampling Period: Approx. 250 ms
• Display Size: 96 × 96 mm (1/4 DIN)
• Features: Auto-tuning, alarm functions, PV/SV display, preventive maintenance function
• Mounting Type: Panel mount
• Protection Rating: IP66 (front panel typical for series)
• Lifecycle Status: Discontinued (replaced by E5CC/E5EC series)
• Application: Industrial temperature monitoring and control

Common Replacements:

• Omron E5CC-QX2ASM-800
• Omron E5EC-QX2ASM-800
• Omron E5EN-C3QMT-500-N
