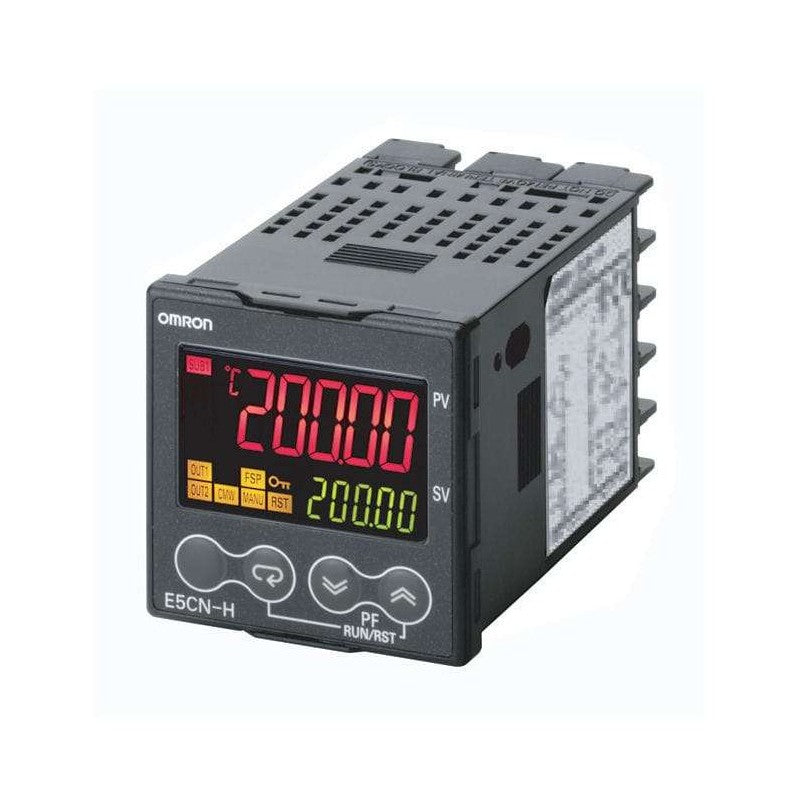

Omron E5CN-HR2M-500 Temperature Controller 100~240VAC 1/16 Din Relay, in E5CNHR2M500

Description:

The Omron E5CN-HR2M-500 Digital Temperature Controller is a compact panel-mounted PID controller used in industrial temperature control systems. Commonly installed in control panels and process equipment to regulate temperature using sensor feedback and advanced control algorithms. Maintenance teams, OEMs, and system integrators use this controller for replacement, retrofit, and precise thermal process control.

Applications:

The Omron E5CN-HR2M-500 Temperature Controller is used in industrial automation systems requiring accurate temperature regulation, including plastic molding machines, furnaces, packaging equipment, and process heating applications. It is ideal for applications that demand stable PID control, universal sensor compatibility, and reliable performance in continuous operation.

Technical Specifications:

• Brand: Omron
• Part Number: E5CN-HR2M-500
• Product Type: Digital Temperature Controller (PID)
• Series: E5CN-H
• Supply Voltage: 100–240 V AC
• Control Method: PID control and ON/OFF control
• Control Output: Relay output
• Input Type: Universal (thermocouple, RTD, voltage, current)
• Supported Sensors: B, E, J, K, T, R, S, Pt100 and others
• Analog Input Types: 0–10 V, 0–20 mA, 1–5 V, 4–20 mA
• Temperature Range: -200°C to 2300°C (sensor dependent)
• Number of Control Loops: 1
• Alarm Outputs: 2 auxiliary outputs
• Event Inputs: 2 inputs
• Display: High-resolution digital display (5-digit, multi-color)
• Sampling Speed: Approx. 60 ms high-speed response
• Mounting Size: 48 × 48 mm (1/16 DIN panel mount)
• Operating Temperature: -10°C to 55°C
• Application: Industrial temperature monitoring and control

Common Replacements:

• Omron E5CC-RX2ASM-800
• Omron E5EC-QX2ASM-800
• Omron E5EN-HR2M-500
