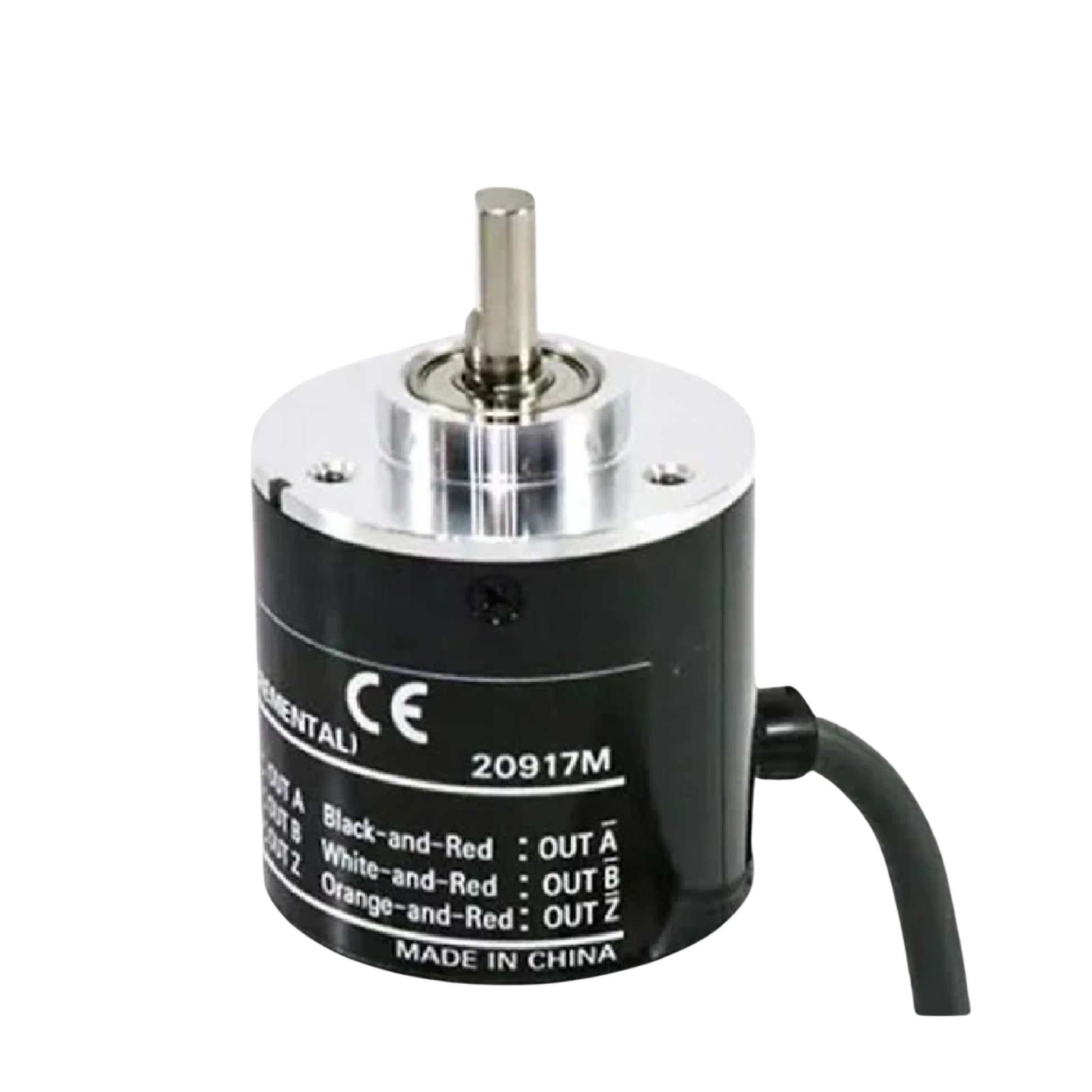

Omron E6B2-CWZ6C 5000P/R 5-24V DC Rotary Encoder E6B2CWZ6C

Description:

E6B2CWZ6C1000PR2M ROTARY ENCODER INCREMENTAL NPN OUTPUT The E6B2-CWZ6C is a high-precision incremental rotary encoder designed for reliable rotational position and speed detection in industrial automation systems. This encoder features a resolution of 1000 pulses per revolution, providing accurate and detailed feedback for precise motion control. The E6B2-CWZ6C is equipped with quadrature output signals (A, B) and a Z pulse for index signaling, ensuring reliable position tracking and ease of use in various applications. Its durable construction and compact size make it suitable for integration into tight spaces and demanding environments.

Technical Specifications:

• Type: Incremental Rotary Encoder
• Output Type: Quadrature (A, B, and Z pulse signals)
• Resolution: 1000 pulses per revolution
• Supply Voltage: 5-12 VDC
• Current Consumption: 30 mA or less
• Output Frequency: 200 kHz (max)
• Shaft Diameter: 6 mm
• Mounting: Shaft mount with set screw
• Protection Rating: IP64
• Temperature Range: -10°C to +60°C
• Housing Material: Aluminum (body), plastic (cover)
• Weight: Approximately 150 grams
