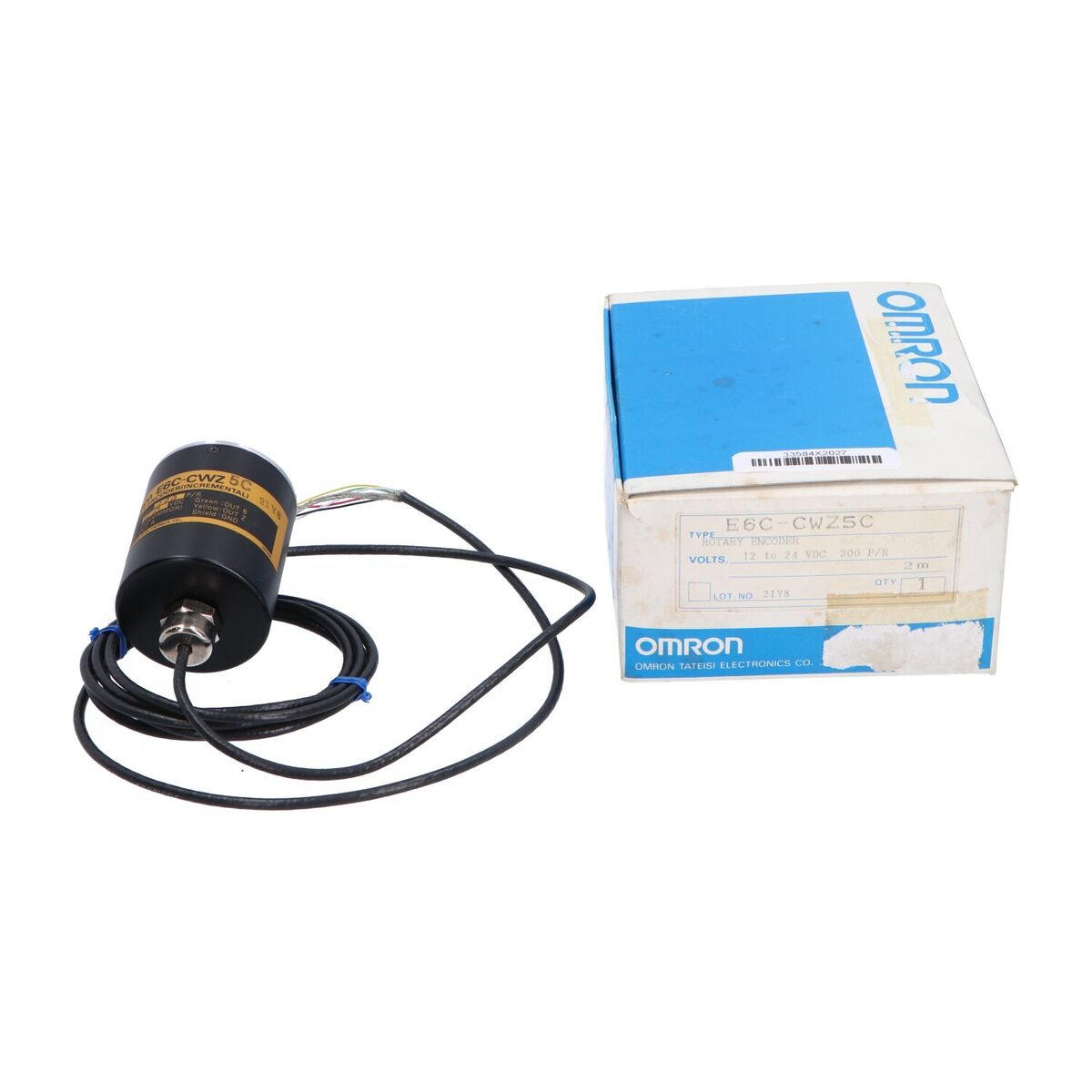

Omron E6C-CWZ5C 100P/R E6CCWZ5C

Description:

The Omron E6C-CWZ5C 100P/R rotary encoder is used in industrial automation systems for accurate position and speed feedback in motion control applications. Commonly installed in conveyor systems, packaging machinery, CNC equipment, and automated production lines requiring precise rotational monitoring. Maintenance teams and system integrators use this part for replacement, retrofit, and maintaining reliable motion feedback in industrial processes.

Applications:

The Omron E6C-CWZ5C rotary encoder is used in industrial environments for position tracking, speed control, and synchronization tasks. It is widely applied in factory automation systems, printing machines, material handling equipment, and assembly lines where consistent and accurate rotational feedback is essential for process control and efficiency.

Technical Specifications:

• Manufacturer Part Number (MPN): E6C-CWZ5C
• Product Type: Incremental Rotary Encoder
• Resolution: 100 pulses per revolution (100 P/R)
• Output Type: NPN open collector
• Supply Voltage: 5 to 24 VDC
• Shaft Type: Solid shaft
• Shaft Diameter: 6 mm
• Maximum Rotation Speed: Up to approx. 5000 rpm
• Output Signals: A, B, Z phase (quadrature with index)
• Connection Type: Pre-wired cable
• Protection Rating: IP50
• Housing Material: Metal body
• Mounting Type: Flange mount
• Operating Temperature: -10°C to +70°C

Common Replacements:

• Omron E6B2-CWZ6C 100P/R
• Omron E6A2-CS5C 100P/R
• Autonics E40S6-100-3-N-24
