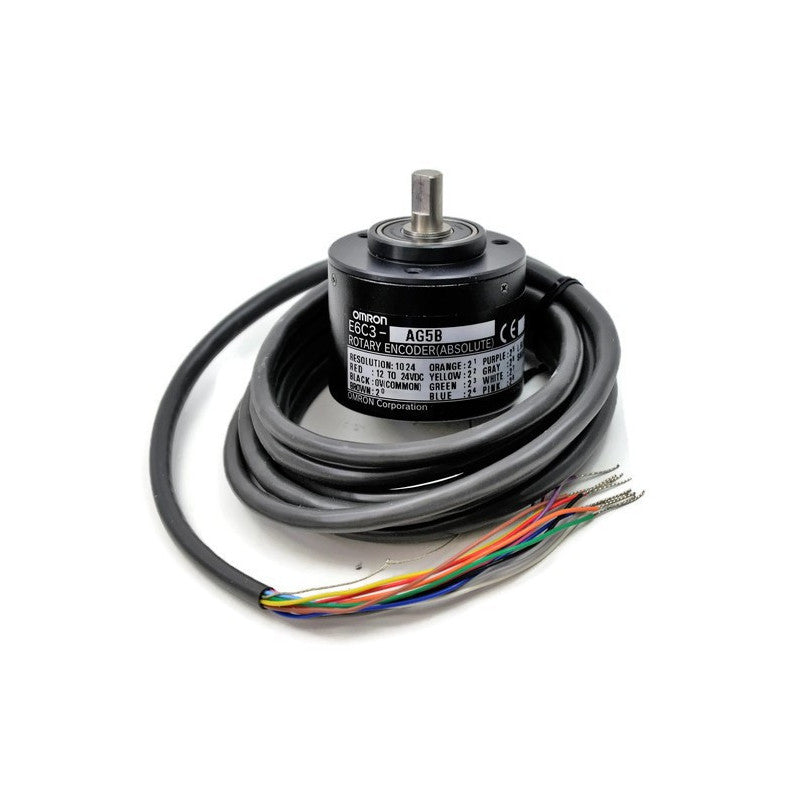

Omron E6C3-AG5B 720P/R PLC E6C3AG5B

Description:

E6C3AG5B720PR1M ROTARY ENCODER ABSOLUTE EXTERNAL DIAMETER: 50 MM PNP OPEN COLLECTOR 720 PR 12 TO 24 VDC OUTPUT CODE: GRAY PRE-WIRED MODEL 1 METER CABLE LENGTH The Omron E6C3-AG5B is a high-precision incremental rotary encoder designed to provide reliable and accurate position and speed feedback for various industrial automation systems. With a resolution of 720 pulses per revolution (PPR), this encoder offers detailed measurement, making it ideal for applications requiring precise motion control. The E6C3-AG5B features a 5V DC power supply and NPN open collector outputs, ensuring compatibility with a wide range of PLCs and control systems. Its robust construction and compact size make it suitable for demanding environments, including those with dust and vibration. The encoder is well-suited for use in machinery, conveyor systems, robotics, and other automated processes where high resolution and durability are essential.

Technical Specifications:

• Type: Incremental Rotary Encoder
• Resolution: 720 pulses per revolution (PPR)
• Output Signal: A and B channels (quadrature output), Z (index pulse)
• Output Type: NPN open collector
• Supply Voltage: 5V DC
• Phase Difference: 90° between A and B channels
• Operating Temperature Range: -10°C to +70°C
• Body Material: Aluminum or plastic (depends on model)
• Degree of Protection: IP40 (dust-tight)
• Mounting Type: Shaft mount
• Shaft Diameter: 6 mm
• Connection Type: 2-meter cable or lead wires
• Weight: Approximately 100 grams
