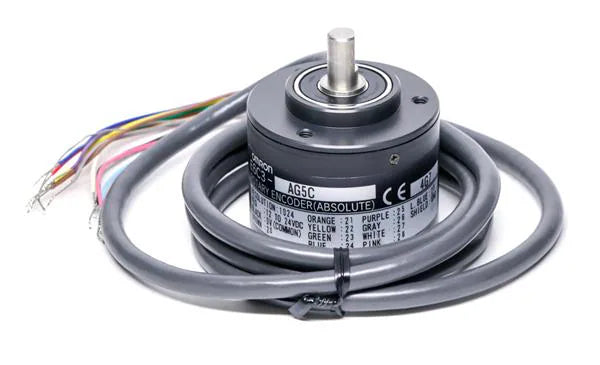

Omron E6C3-AG5C 720P/R Rotary Encoder E6C3AG5C

Description:

The Omron E6C3-AG5C 720P/R rotary encoder is used in industrial automation systems for precise position detection and rotational feedback in PLC-controlled equipment. Commonly installed in conveyor systems, packaging machines, CNC machinery, and automated assembly lines requiring accurate speed and position monitoring. Maintenance teams and system integrators use this part for replacement, retrofit, and maintaining reliable motion feedback in automation processes.

Applications:

The Omron E6C3-AG5C rotary encoder is widely used in industrial applications where accurate rotational position and speed feedback are essential. It is commonly applied in conveyor synchronization, packaging and labeling machines, robotic positioning systems, and CNC equipment to ensure precise motion control and stable operation within PLC-based automation environments.

Technical Specifications:

• Manufacturer: Omron
• Part Number: E6C3-AG5C
• Product Type: Rotary Encoder
• Encoder Type: Incremental rotary encoder
• Resolution: 720 pulses per revolution (P/R)
• Output Type: NPN open collector
• Supply Voltage: 5 to 24 VDC
• Shaft Type: Solid shaft
• Shaft Diameter: 6 mm
• Mounting Type: Flange mounting
• Protection Rating: IP50 to IP65 (model dependent)
• Operating Temperature: -10°C to +70°C
• Connection Type: Pre-wired cable

Common Replacements:

• Omron E6C3-CWZ5GH 720P/R Rotary Encoder
• Omron E6B2-CWZ6C 720P/R Rotary Encoder
• Omron E6F-AG5C-C Rotary Encoder
