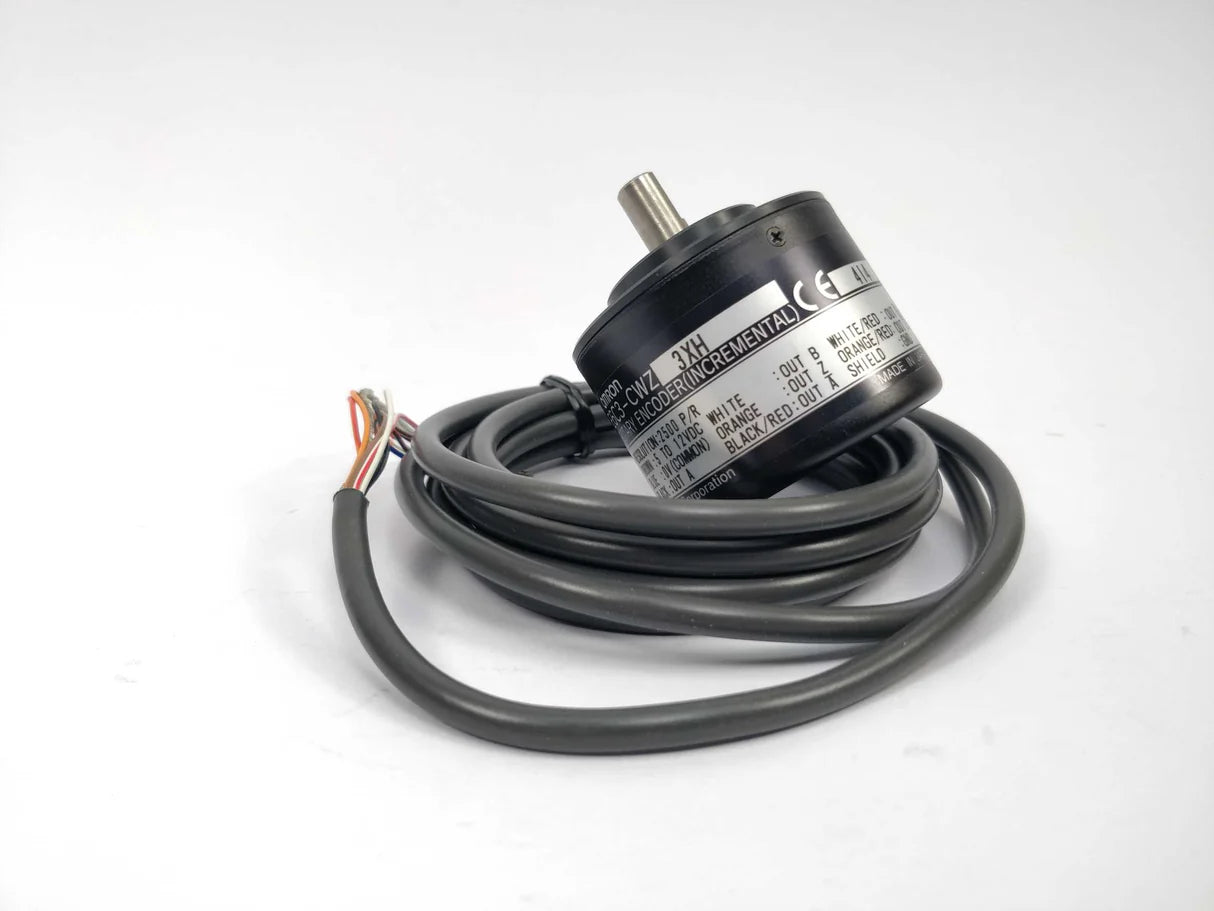

Omron E6C3-CWZ3XH 3600P/R Rotary Encoder E6C3CWZ3XH

Description:

E6C3CWZ3XH3600PR1M INCREMENTAL ROTARY ENCODER 5-12VDC LINE-DRV ABZ PHASE LOAD AT 100 MV DC VOLTAGE (P LEVEL) [MIN] METRIC COMMUNICATION PORTS 2 LINEAR OUTPUT CURRENT 5000 INPUT PHASE 3600 SHIELD TYPE LINE DRIVER APPLICATION E6C3-C LINEAR OUTPUT VOLTAGE 8 The Omron E6C3-CWZ3XH is a high-precision incremental rotary encoder designed for accurate position and speed detection in industrial automation systems. It is known for its robust performance and high resolution, making it suitable for a variety of demanding applications.

Technical Specifications:

• Type: Incremental Rotary Encoder
• Resolution: 1000 pulses per revolution
• Output Type: Quadrature (A, B) with index pulse (Z)
• Supply Voltage: 5-12 VDC
• Current Consumption: 30 mA or less
• Output Frequency: 200 kHz (maximum)
• Shaft Diameter: 6 mm
• Mounting: Shaft mount with set screw
• Protection Rating: IP64 (dust-tight and protected against splashes of water)
• Temperature Range: -10°C to +60°C
• Housing Material: Aluminum (body), plastic (cover)
• Weight: Approximately 150 grams
