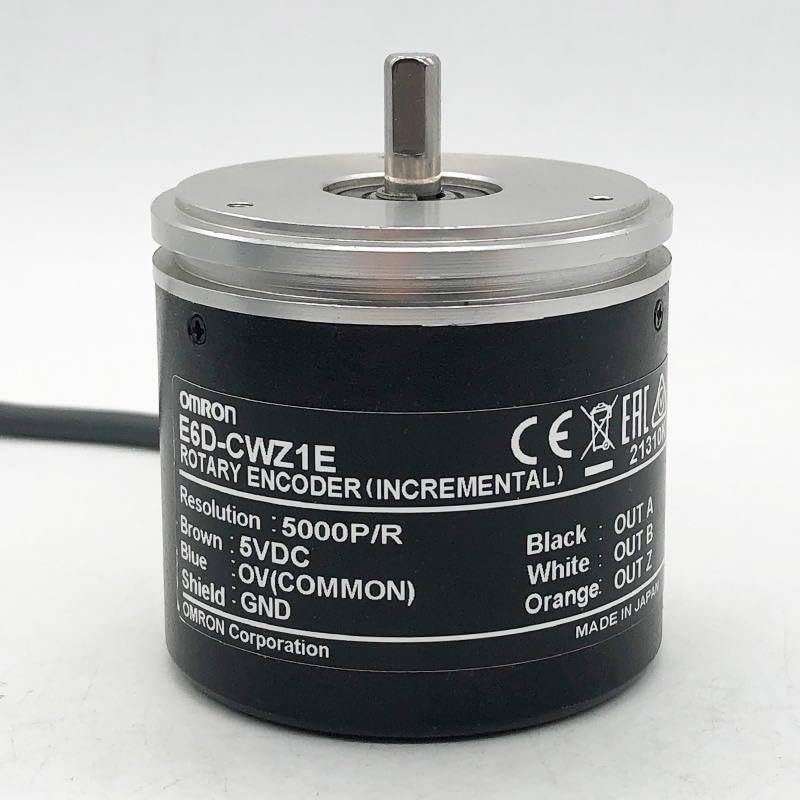

Omron E6D-CWZ1E 5000P/R Encoder E6DCWZ1E

Description:

The Omron E6D-CWZ1E 5000P/R rotary encoder is used in industrial automation systems for ultra-high resolution position and speed feedback in precision motion control applications. Commonly installed in CNC machines, robotics systems, semiconductor equipment, and high-speed production lines requiring accurate rotational monitoring. Maintenance teams and system integrators use this part for replacement, retrofit, and maintaining precise motion feedback in advanced industrial processes.

Applications:

The Omron E6D-CWZ1E rotary encoder is used in industrial environments for high-precision position tracking, speed monitoring, and synchronization tasks. It is widely applied in automated inspection systems, printing machines, servo motor control, and precision assembly lines where fine resolution feedback is critical for process accuracy and control stability.

Technical Specifications:

• Manufacturer Part Number (MPN): E6D-CWZ1E
• Product Type: Incremental Rotary Encoder
• Resolution: 5000 pulses per revolution (5000 P/R)
• Output Type: NPN open collector
• Supply Voltage: 5 to 24 VDC
• Shaft Type: Solid shaft
• Shaft Diameter: 6 mm
• Maximum Rotation Speed: Up to approx. 3000 to 5000 rpm (model dependent)
• Output Signals: A, B, Z phase (quadrature with index)
• Connection Type: Pre-wired cable
• Protection Rating: IP50
• Housing Material: Metal body
• Mounting Type: Flange mount
• Operating Temperature: -10°C to +70°C

Common Replacements:

• Omron E6C3-CWZ5GH 5000P/R
• Omron E6B2-CWZ6C 5000P/R
• Autonics E40S6-5000-3-N-24
