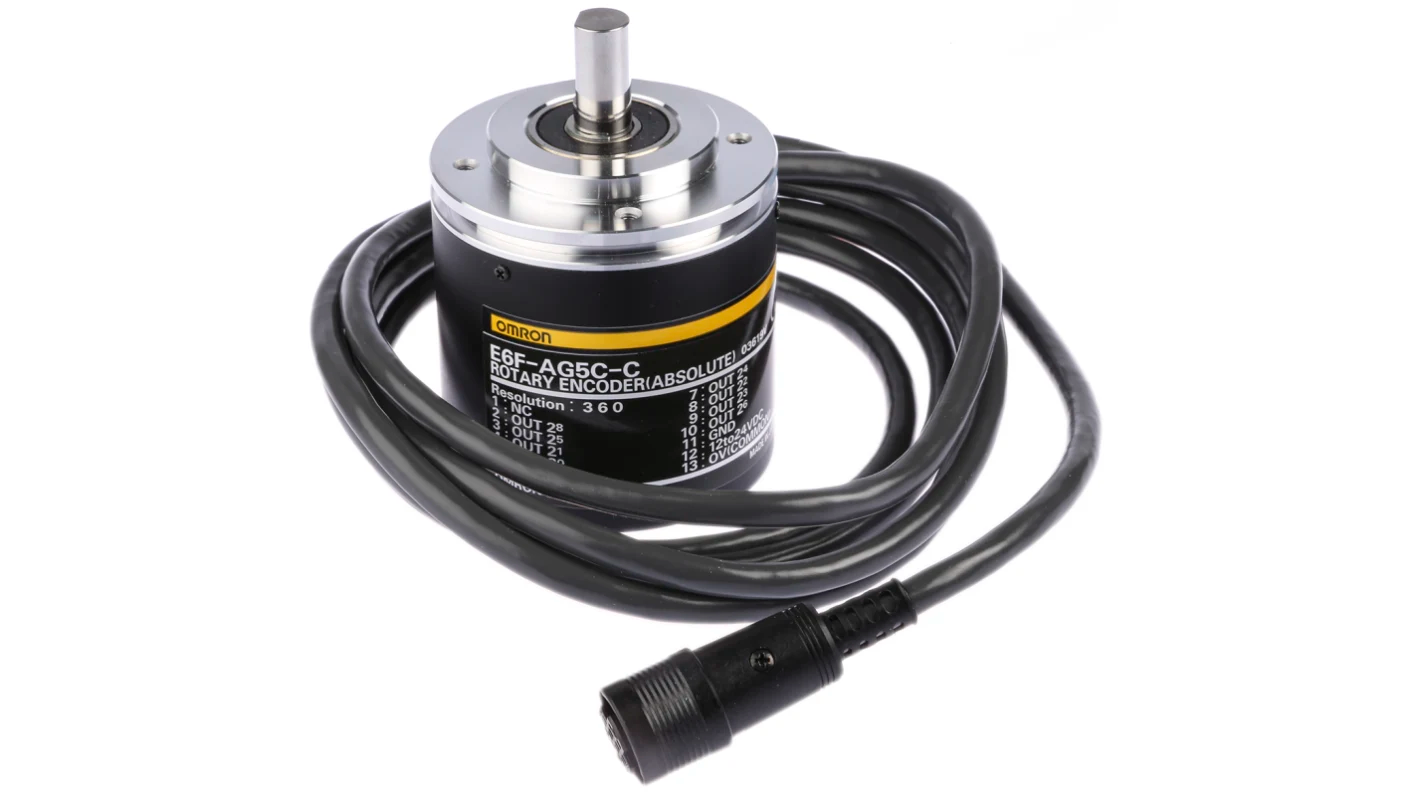

Omron E6F-AG5C-C 360P/R General Purpose Rotary Encoder E6FAG5CC Unit E6FAG5C-C

Description:

The Omron E6F-AG5C-C Rotary Encoder is an absolute-type encoder used in industrial positioning and motion control systems. Commonly installed in cam positioners, automation machinery, and rotary equipment to provide precise angular position feedback. Maintenance teams, OEMs, and system integrators use this encoder for replacement, retrofit, and accurate position detection in control systems.

Applications:

The Omron E6F-AG5C-C Rotary Encoder is used in industrial automation systems requiring precise rotational position sensing, including packaging machines, conveyor systems, indexing tables, and cam control applications. It is ideal for applications that demand stable output signals, high durability, and accurate position tracking.

Technical Specifications:

• Brand: Omron
• Part Number: E6F-AG5C-C
• Product Type: Absolute Rotary Encoder
• Resolution: 360 pulses per revolution (P/R)
• Output Code: Gray code
• Output Type: NPN open collector
• Power Supply: 12–24 V DC
• Construction Size: 60 mm diameter
• Shaft Diameter: 10 mm
• Maximum Speed: Up to 5000 rpm
• Operating Temperature: -10°C to 70°C
• Connection Type: Pre-wired cable / connector (model dependent)
• Application: Rotary position sensing and motion control

Common Replacements:

• Omron E6F-AG5C 360P/R
• Omron E6C3-AG5C-C 360P/R
• Omron E6CP-AG5C-C 256P/R
