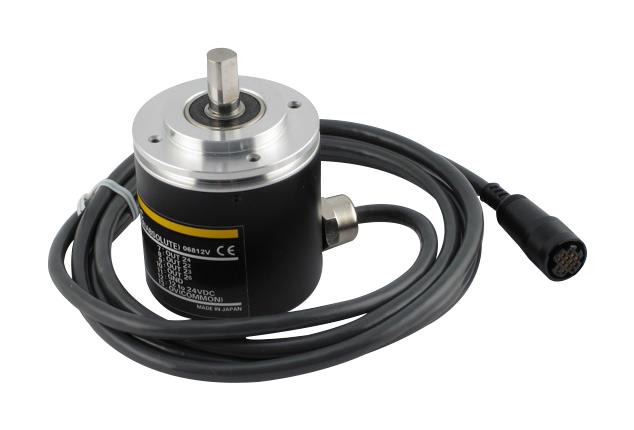

Omron E6F-AG5C-C ROTARY ENCODER SWITCH PLC MODULE E6FAG5CC

Description:

The Omron E6F-AG5C-C rotary encoder switch is used in industrial automation systems for position detection and rotational feedback in PLC-controlled equipment. Commonly installed in conveyor systems, packaging machines, CNC machinery, and automated assembly lines requiring precise motion control and speed monitoring. Maintenance teams and system integrators use this part for replacement, retrofit, and maintaining accurate encoder feedback in automation processes.

Applications:

The Omron E6F-AG5C-C rotary encoder is used in industrial automation environments where accurate position and speed feedback is required for system control. It is commonly applied in conveyor synchronization, packaging and labeling machines, robotic systems, and CNC equipment to ensure precise motion control and operational efficiency within PLC-based systems.

Technical Specifications:

• Manufacturer: Omron
• Part Number: E6F-AG5C-C
• Product Type: Rotary Encoder Switch
• Encoder Type: Incremental rotary encoder
• Output Type: NPN open collector
• Resolution: Up to 2000 pulses per revolution (model dependent)
• Supply Voltage: 5 to 24 VDC
• Shaft Type: Solid shaft
• Shaft Diameter: 6 mm / 8 mm (model dependent)
• Mounting Type: Flange mounting
• Protection Rating: IP50 to IP65 (model dependent)
• Operating Temperature: -10°C to +70°C
• Connection Type: Pre-wired cable or connector type

Common Replacements:

• Omron E6F-AG5C-C 360P/R Rotary Encoder
• Omron E6B2-CWZ6C Incremental Rotary Encoder
• Omron E6C3-CWZ5GH Rotary Encoder
