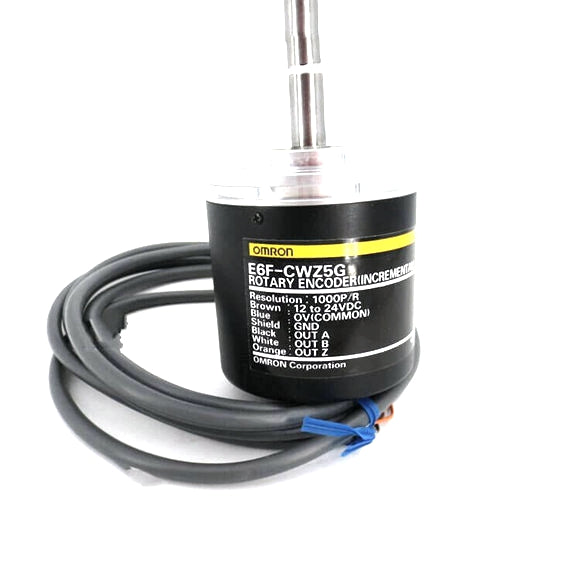

Omron E6F-CWZ5C 1000P/R E6FCWZ5C

Description:

The Omron E6F‑CWZ5C 1000P/R is a rotary incremental encoder that provides precise position and speed feedback for motion control systems. Installed on motor shafts, gearboxes, and indexing mechanisms where reliable and high‑resolution feedback is needed for accurate motion control. Maintenance teams, system integrators, and OEMs use this encoder for replacement, retrofit, and performance upgrades to improve control accuracy and system responsiveness in automated equipment.

Applications:

The Omron E6F‑CWZ5C 1000P/R encoder is used in industrial automation, robotics, CNC machines, packaging equipment, conveyor systems, and material handling applications where accurate rotational position and speed feedback enhances control and synchronization. Omron encoders provide dependable feedback to PLCs, motion controllers, and drive systems for precise control in manufacturing lines, assembly cells, and test/inspection machinery.

Technical Specifications:

• Manufacturer: Omron
• Model / Part Number: E6F‑CWZ5C
• Product Type: Rotary Incremental Encoder
• Resolution: 1000 P/R (pulses per revolution)
• Output Type: Quadrature (typically A/B channels)
• Shaft Size: Standard industrial shaft diameter (model dependent)
• Mounting: Flange or bracket mount on motor or shaft
• Frequency Response: High frequency for fast rotation detection
• Supply Voltage: DC supply (usually 5–24 V DC depending on version)
• Output Signals: Two phased pulse outputs (A/B), optional Z index
• Protection Rating: Industrial environmental rating
• Operating Temperature: Standard industrial range
• Application: Position and speed feedback for motion control

Common Replacements:

• Omron E6F‑CWZ5B
• Omron E6B2‑CWZ6C
• Panasonic A6C‑T1000H Rotary Encoder
