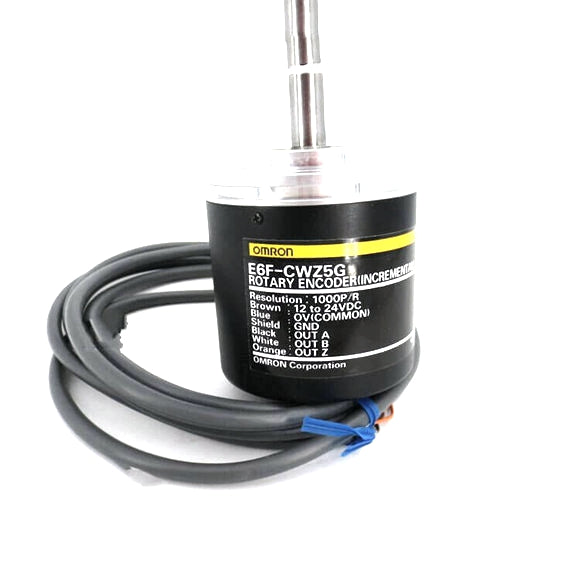

Omron E6F-CWZ5C 1000P/R E6FCWZ5C

Description:

The Omron E6F-CWZ5C is a high-precision rotary encoder designed to provide accurate position and speed feedback in various industrial applications. With a resolution of 1000 pulses per revolution (P/R), this encoder offers reliable and consistent performance for rotational measurement. Its robust construction and compact design make it suitable for integration into a variety of automation and control systems, ensuring precise control and monitoring.

Technical Specifications:

• Model Number: E6F-CWZ5C
• Resolution: 1000 Pulses per Revolution (P/R)
• Output Type: Incremental
• Power Supply Voltage: 5 to 24 VDC
• Output Signal: 2-Channel (A, B) Quadrature
• Current Consumption: Approximately 40 mA
• Response Frequency: 100 kHz maximum
• Operating Temperature: -10°C to +60°C
• Protection Rating: IP50 (dustproof)
• Mounting Type: Flange
• Body Material: Metal with a plastic cover
