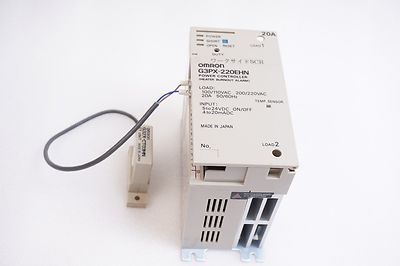

Omron G3PX-220EHN Power Controller G3PX220EHN

Description:

The G3PX-220EHN is a robust and highly reliable solid-state relay from Omron, designed for precise and efficient switching of electrical loads in industrial automation and control applications. This relay features an optically isolated design, which enhances its durability and provides protection against electrical noise and interference. It supports a wide range of input and output voltages, making it versatile for various applications. The G3PX-220EHN is particularly noted for its fast switching capabilities and long operational life, making it suitable for controlling resistive and inductive loads with high accuracy and minimal maintenance.

Technical Specifications:

• Model: G3PX-220EHN
• Type: Solid-State Relay (SSR)
• Control Voltage (Input): 4-32V DC
• Load Voltage (Output): 24-240V AC
• Load Current: 20A
• Output Type: Triac (AC load switching)
• Response Time: < 1 ms
• Insulation Resistance: 100 MΩ minimum at 500V DC
• Operating Temperature Range: -30°C to 80°C
• Storage Temperature Range: -40°C to 90°C
• Dimensions (W x H x D): 75 x 90 x 40 mm
• Weight: Approximately 250 g
• Mounting Type: DIN rail or panel mount
• Protection Rating: IP20 (terminals), IP00 (body)
