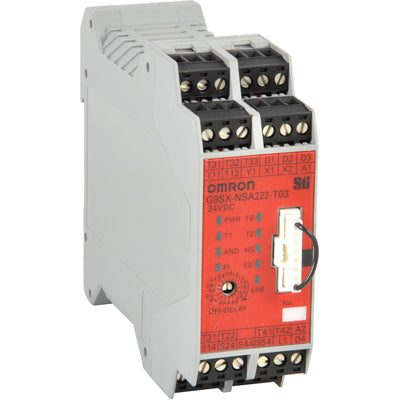

Omron G9SX-NSA222-T03-RT Safety Relay G9SXNSA222T03RT

Description:

G9SXNSA222T03RTDC24 SAFETY RELAY MACHINE SAFETY CONTROLLER MAGNETIC INTERLOCK 4 WATTS 24 VDC 2 INPUTS SAFETY OUTPUTS AND TYPE SOLID STATE 4 AUXILIARY OUTPUTS AND TYPE: SOLID STATE (2) The G9SX-NSA222-T03-RT is a high-quality safety relay from Omron, designed to provide reliable and effective safety control in industrial automation systems. This model is equipped with advanced safety features to ensure compliance with safety standards and protect both equipment and personnel. The G9SX-NSA222-T03-RT offers dual-channel safety inputs, built-in diagnostics, and a configurable output relay, making it suitable for use in applications requiring high levels of safety and fault detection. With its compact design and robust construction, this safety relay is ideal for integration into various safety circuits and applications where reliable safety monitoring is crucial.

Technical Specifications:

• Model: G9SX-NSA222-T03-RT
• Type: Safety Relay
• Safety Category: Category 4 (according to ISO 13849-1)
• Safety Function: Emergency stop, safety door monitoring, and other safety applications
• Input Type: Dual-channel
• Input Voltage Range: 24V DC
• Output Type: Relay contact
• Contact Configuration: 2 x Normally Open (NO)
• Contact Rating: 6A at 250V AC / 6A at 30V DC
• Response Time: Approximately 20 ms
• Diagnostics: Built-in diagnostic functions for detecting faults
• Operating Temperature Range: -10°C to 55°C
• Storage Temperature Range: -25°C to 65°C
• Dimensions (W x H x D): 22.5 x 90 x 110 mm
• Weight: Approximately 200 g
• Mounting Type: DIN rail mount
• Protection Rating: IP20 (terminals), IP00 (body)
